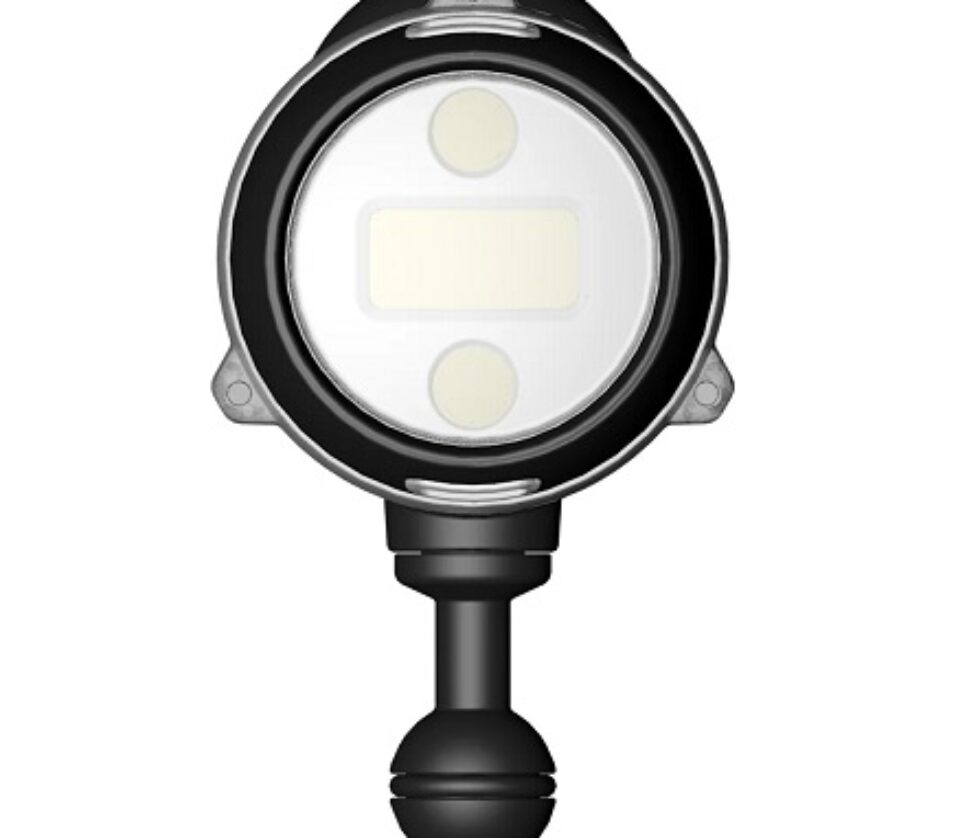

Strobe Flash AOI GN22 UCSQ1RC

AOI UCS-Q1RC GN22

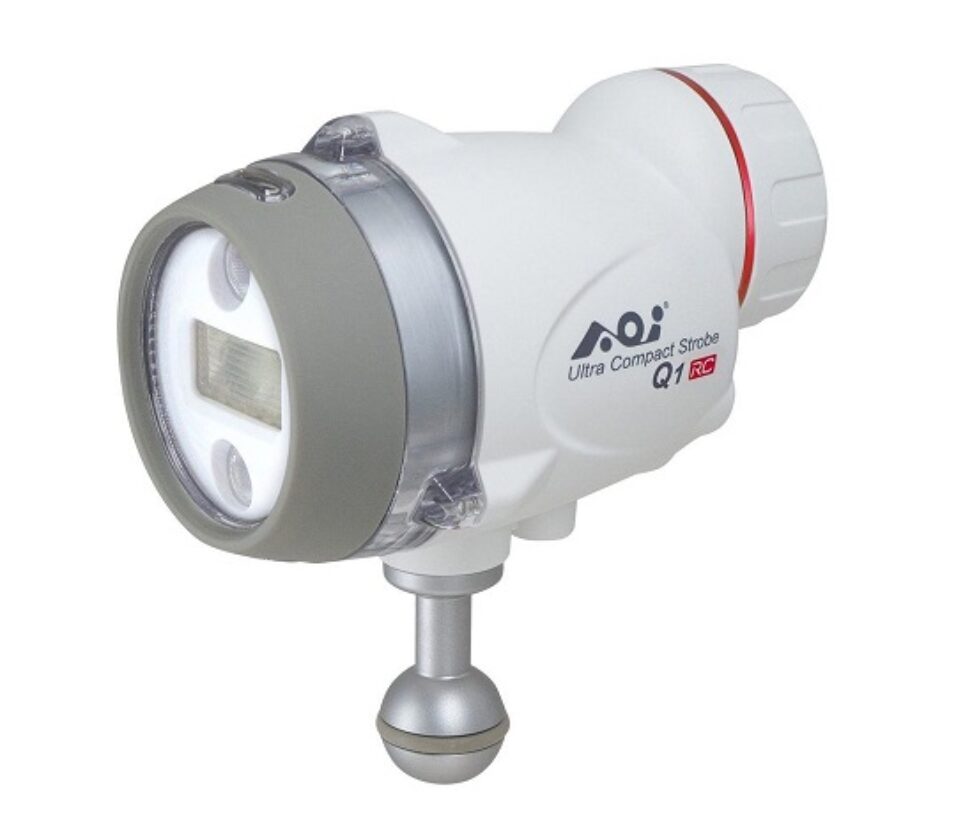

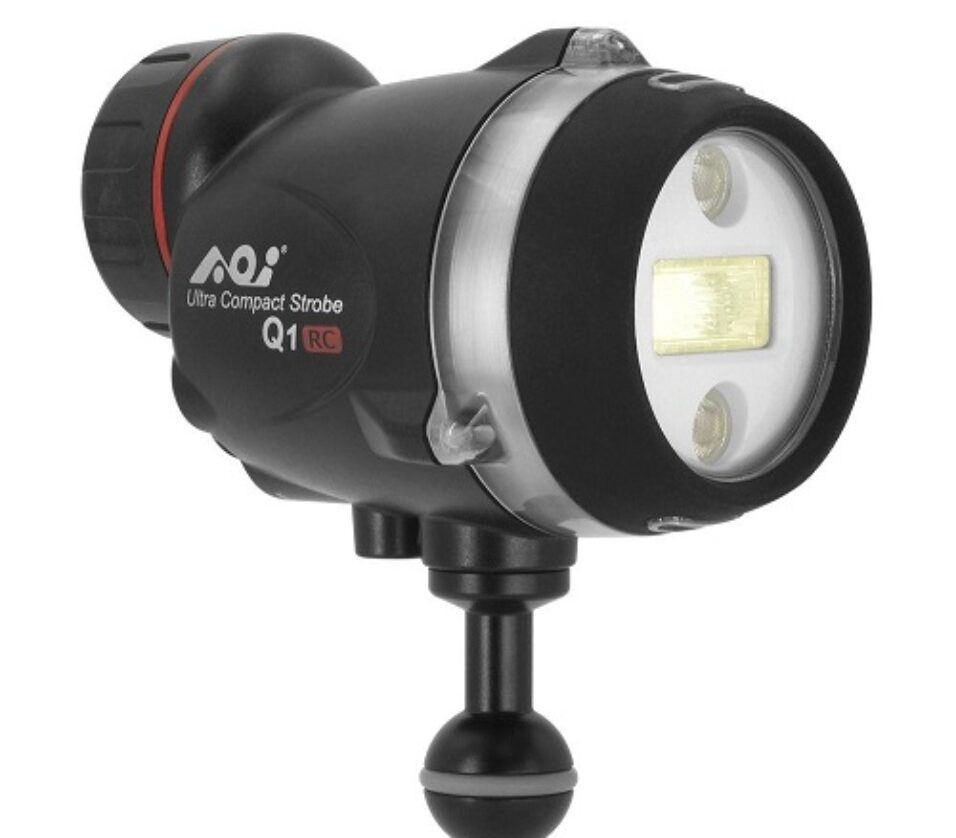

AOI UCS-Q1 has been upgraded to the AOI UCS-Q1-RC, which now supports RC-TTL wireless flash technology.

It can measure light and automatically calculate the output flash brightness for close-up and wide-angle photos with just one click, without any further underwater adjustments.

• True GN-22 flash index.
• Fash recycle time of 0.85 of a second at Full Power.
• Olympus RC Mode for perfectly exposed Images.
• i-Macro Mode unique strobe settings for Macro Images.
• Supports a high-speed shutter flash, helping you capture fast-moving creatures underwater.
• Wireless connection of flash underwater for shooting various special effects.

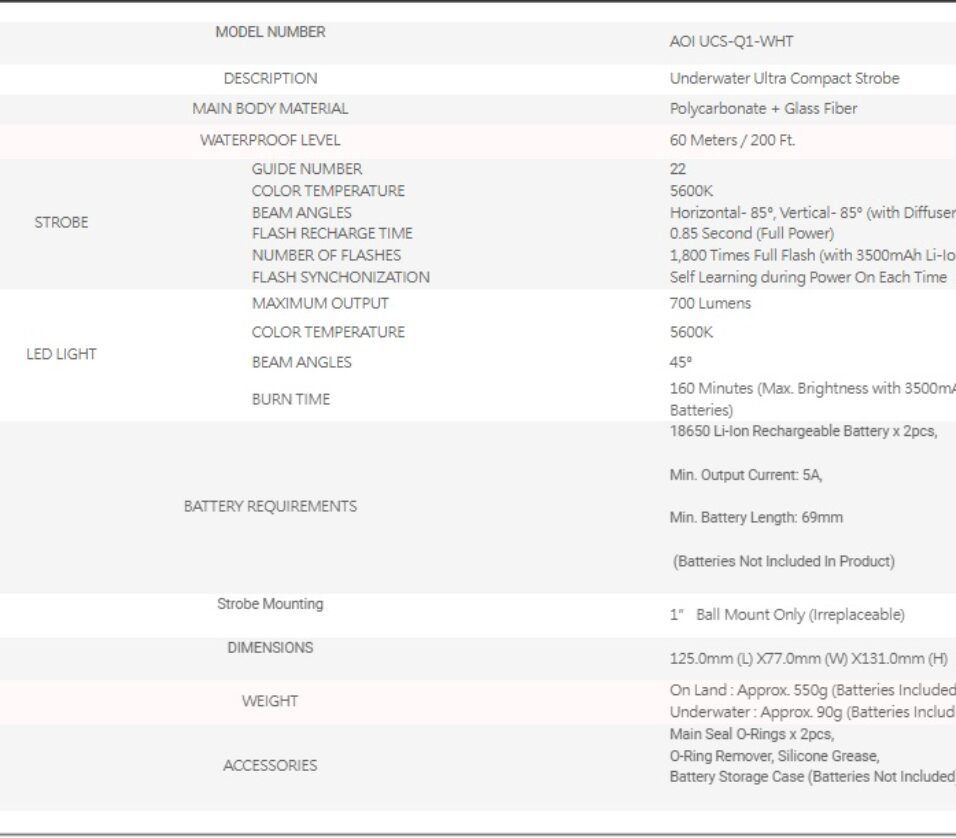

SPECIFICATION :

• MODEL NUMBER : AOI UCS-Q1RC-WHT AOI UCS-Q1RC-BLK
• MAIN BODY MATERIAL : Polycarbonate + Glass Fibre
• DEPTH RATING : 60 Meters
• Guide Number : G.N.= 22
• Colour Temperature : 5,600K (5,000K with Diffusor)
• Beam Angles : With Diffusor Horizontal- 85°, Vertical- 85°
• Flash Recharge Time : 0.85 Second (Full Power)
• Number of Flashes : 1,500 times (Using Flash Only, Full Power and with 3,100mAh Li-Ion Batteries)
• Flash Sync. : By Fibre Optical Cable (Multi-cores Fibre Optical Cable is Recommended)
• Pre-flashes Sync. : Auto Learning
• Flash Modes : RC Mode OMDS / RC FLASH (Group A, Channel 1) TTL AUTO, MANUAL, FP TTL AUTO, FP MANUAL

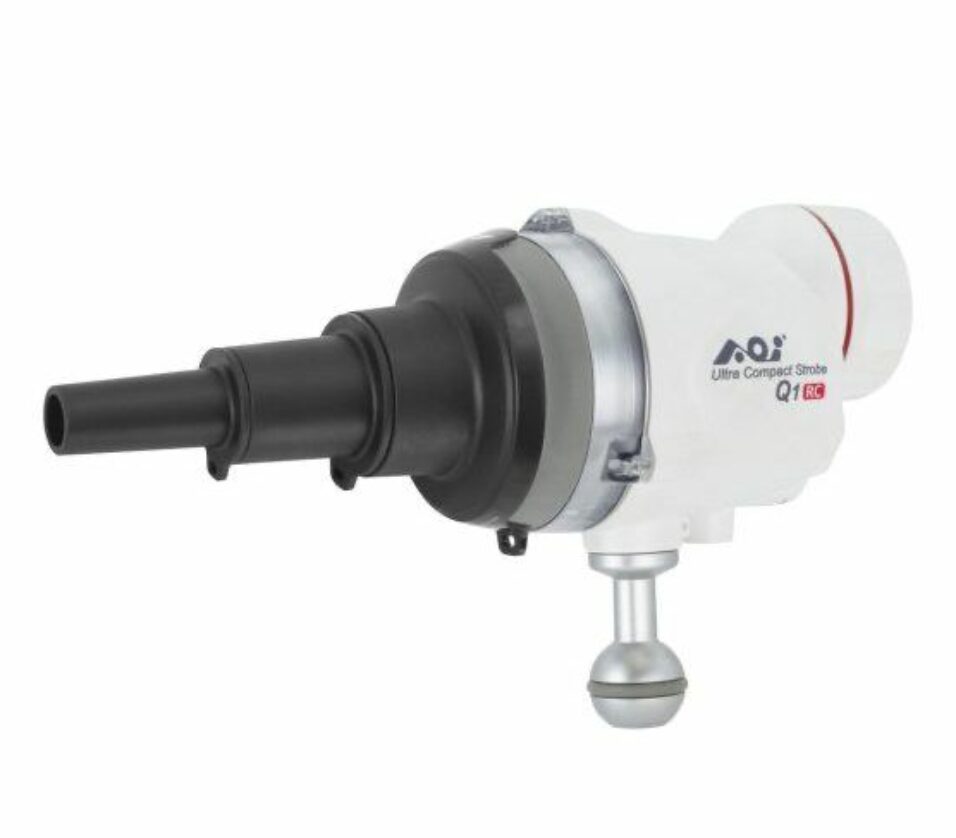

• i-Macro Mode : TTL AUTO, MANUAL, Snooting (Group A, Channel 1)
• Manual Mode : 6 Steps Setting: 1/64, 1/24, 1/8, 1/4, 1/2 & 1/1
• Modelling Flash : 2 Seconds Flashing Duration / Press

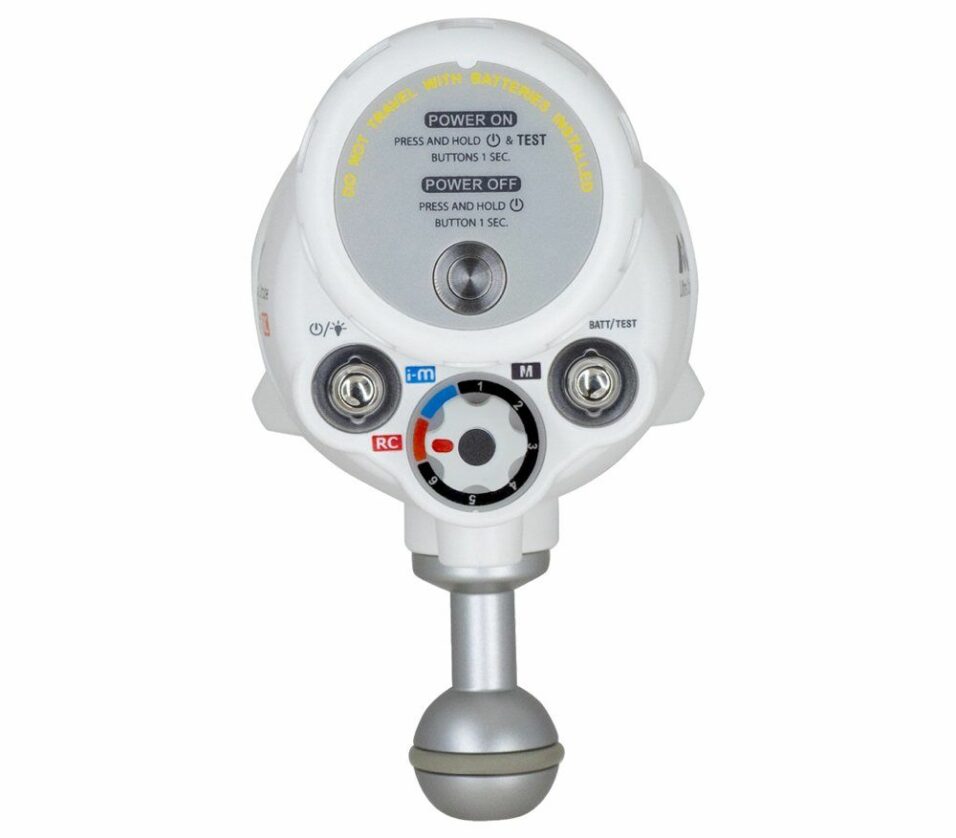

• Flash Test Button : Yes

LED LIGHT

• Light Maximum Output : 700 Lumens
• Power Control : 25%, 50%, 100% and OFF
• Colour Temp. : 5600K
• Beam Angles : 45°
• Burn Time : 130 Minutes (Using LED Only, Full Power and with 3,100mAh Li-Ion Batteries.)

BATTERY REQUIREMENTS

• 18650 Li-Ion Rechargeable Battery x2pcs (Battery is not included with the product)
• Output Current Minimum 5A
• Battery Length Minimum 68.5mm

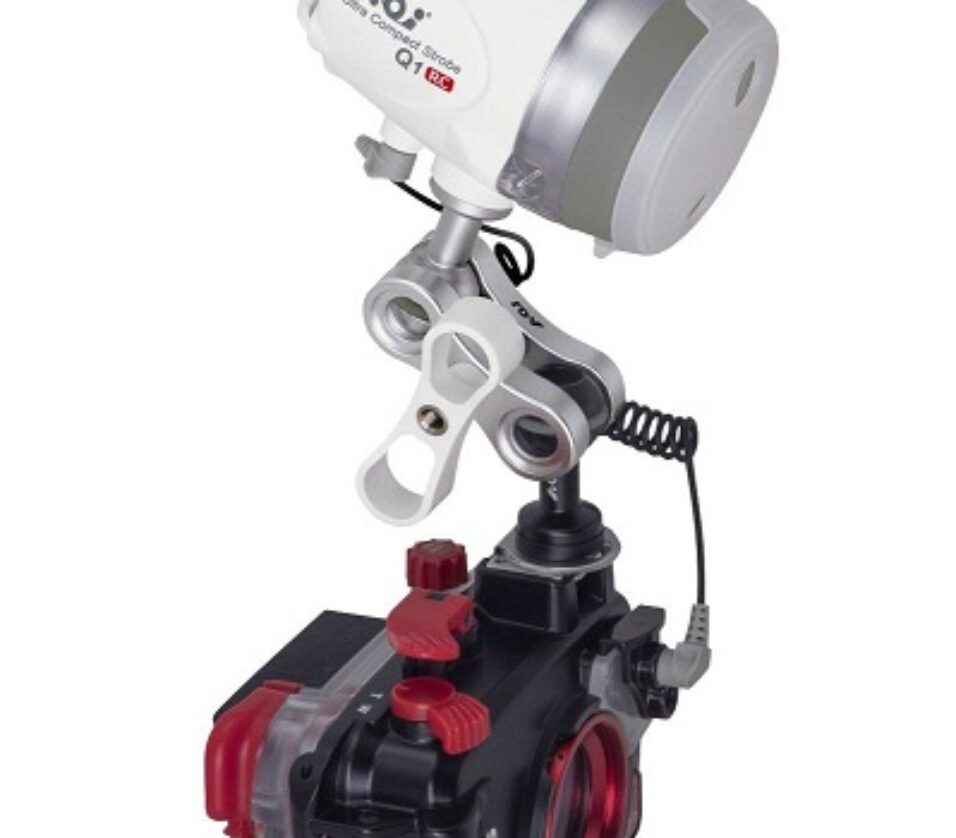

• STROBE MOUNTING : 1″ Ball Mount Only (Non-replaceable)
• DIMENSIONS : 125mm (L) x 77mm (W) x 131mm (H)
• WEIGHT : On Land Approx. 550g (Batteries included) // Underwater Approx. 90g (Batteries included)

STANDARD ACCESSORIES :

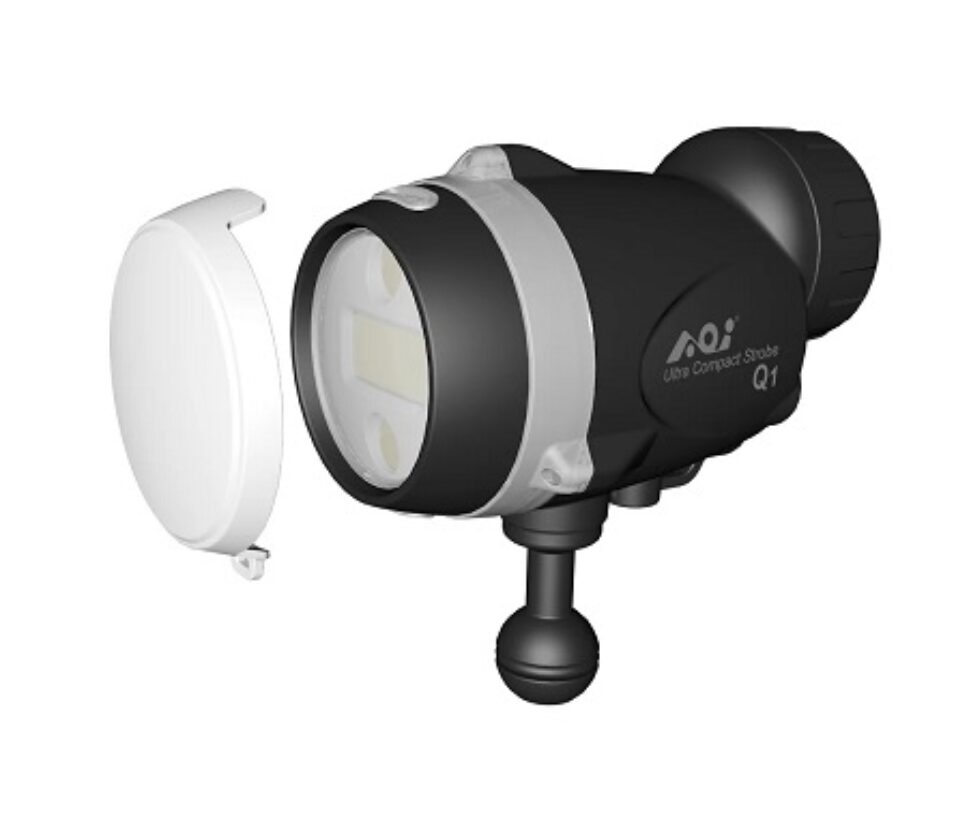

• Strobe Diffusor for Q1 Series SD-01
• Control Knob Extension for Q1 Series CKE-01
• Spare O-ring set for Q1 Series SOR-01
• O-ring Remover ORR-01
• Silicone Grease (5g) SIGR-5
• Battery Storage Case BSC-18650-2 (Rechargeable Batteries are not included)

No product sparepart available
