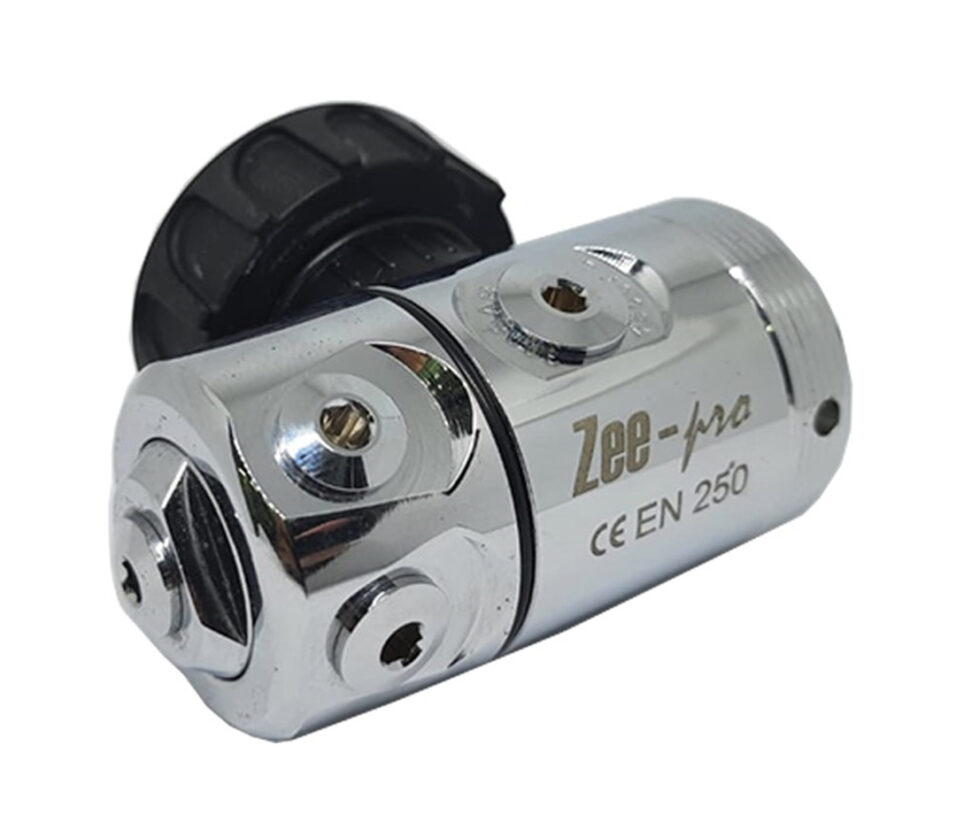

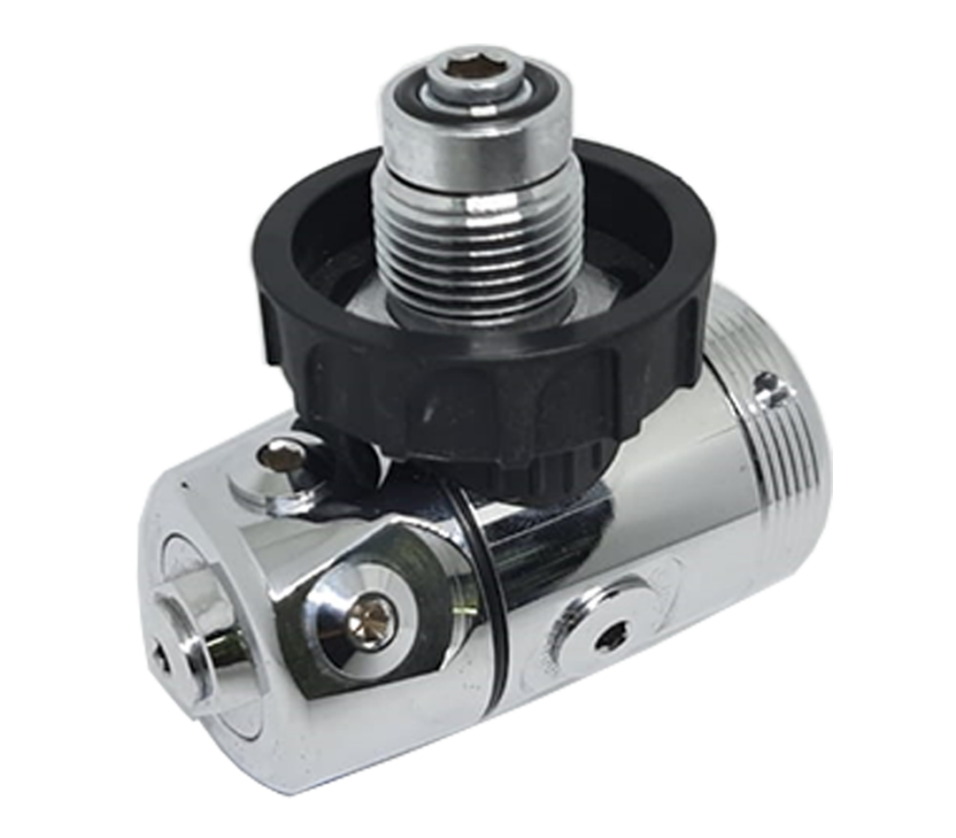

1ST STAGE ZEEPRO DIAPHRAGM SEALED SWIVEL TURET (DIN)
An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out
- Highly polished bright chrome plating.
- Compact cylindrical body with LP ports on a rotating turret and angled for optimum hose routing.
- 5 angled medium pressure ports, 5 x 3/8"-24 UNF.
- 2 angled high pressure ports, 2 x 7/16"-20 UNF.
- Connections 300 bar DIN for added safety
- Type of first stage Over-balanced diaphragm design.
- Environmentally sealed
- First stage exterior Chrome over marine brass
- Cold Water Use : Yes
