Wing BCD Diverite Transplate XT Voyager EXP (35Lb) PK3547
All of the features with less weight.

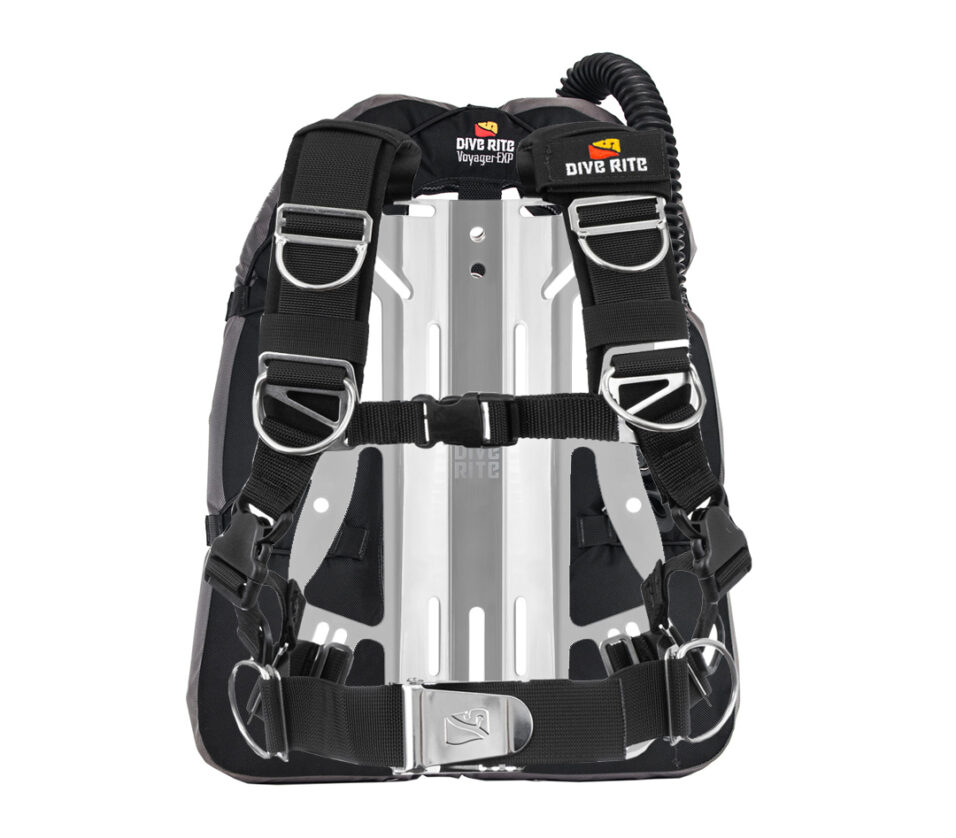

BCD SET DIVERITE TRANSPLATE XT + VOYAGER EXP WING 35LB
Package Include :
- TransPlate XT Harness
- Tank Straps
- XT Lite SS Backplate
- Voyager EXP Wing
- 1.5" Crotch Strap
BC2119 DIVERITE XT LITE SS BACKPLATE
Our laser-cut, CNC deburred and electropolished XT Lite backplate was designed with rounded corners to prevent pressure points and snagging. Built-in holes for bungee allow divers to sidemount stage bottles without the need for modification and slots for cam bands make it easy to carry a single tank with no need for an adapter. At 2.5 pounds, the XT Lite backplate is perfect for travel or anywhere you are trying to save weight.
- 14 Gauge low carbon 316L Stainless Steel
- Laser cut, CNC deburred edges
- Electropolished and Laser Engraved
- 2.61 lbs (1.18 kg)
- 10.5 in (26.7 cm) at the widest point x 15 in (39.4 cm)
- 1.25 in (3.2 cm) depth (with contour)
T3550 DIVERITE TRANSPLATE XT LITE HARNESS
- Made in USA
- Available in sizes Medium through XXL
- Shoulder pads constructed of 1000 denier ballistic nylon fabric for tear and abrasion resistance. 2-inch (50 mm) nylon webbing rated at 7,000 lbs breaking strength forms the shoulder straps and waist strap
- Four 2-inch D-rings on each shoulder strap are slightly bent for improved access and placement can be adjusted. Note: Size Medium has only one 2-inch D-ring per shoulder strap due to space limitations
- Marine Grade 316 stainless steel hardware is used throughout including: (2) bent D-rings on each shoulder strap (except Size Medium that has only one bent D-ring per shoulder) and (2) waist D-rings, XT chest plates, belt buckle, cam strap buckles, and side plates
- Shoulder straps feature pivot rings at chest level for comfort, fit, and load distribution
- Acetyl resin engineered plastic quick release buckles on shoulders for easy doff and don
- 1-inch nylon webbing rated at 2,200 lbs breaking strength and a Delrin 1-inch quick release buckle are used for a chest strap
- Marine grade stainless steel base plates allow for proper placement of shoulder straps. Plates can be moved forward or backward on the waist strap to get the best fit and performance

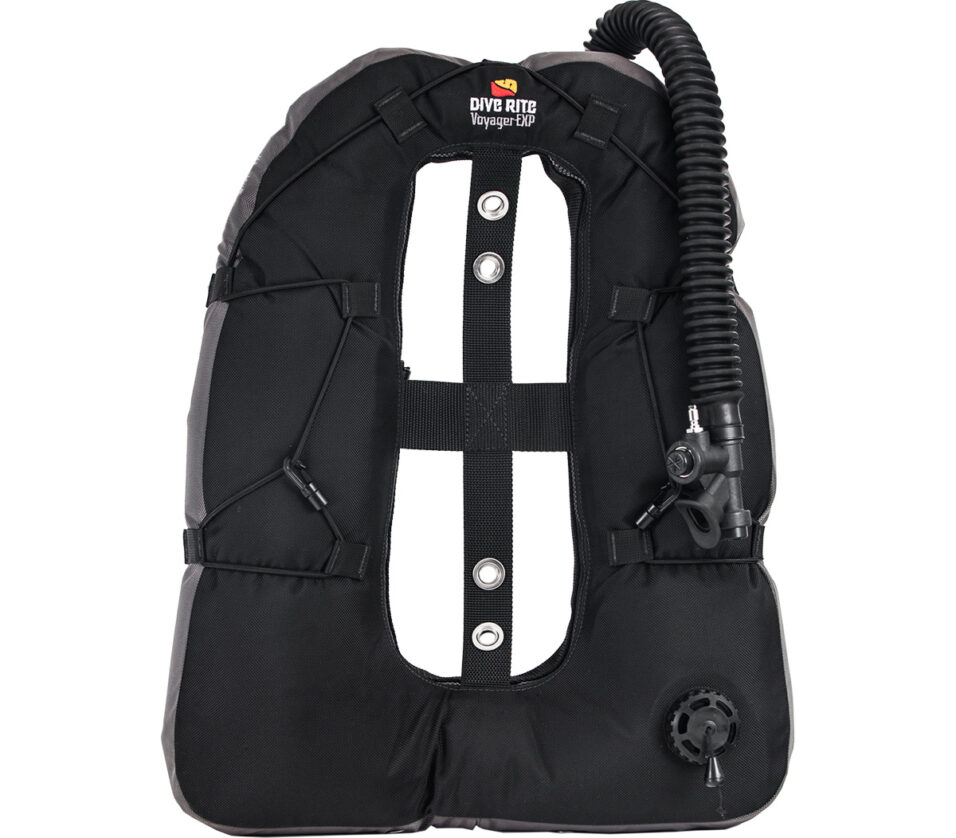

BC4700 DIVERITE VOYAGER EXP WING
The donut-shaped design of the Voyager Series wing provides greater stability and control while diving by keeping an even volume of inflation on the top, sides, and bottom. This, along with an integrated Gusset Control System (GCS) that reduces “taco” effect and promotes effective streamlining, puts buoyancy where it is most needed (throughout the torso supporting the weight of the tank) for superior horizontal trim. The GCS is not like a bungee wing because it does not restrict airflow; instead, the GCS promotes added streamlining and buoyancy control, yet allows the wing to inflate to its full capacity. Even floating on the surface, the Voyager Series wings excel by keeping the diver in a vertical position when used in conjunction with a harness and crotch strap; it won’t tip you over.
Divers may choose from our durable 1680 ballistic nylon EXP material, available in 5 different color combinations, or our even more rugged SuperFabric® brand technology XT material that creates an armor-clad outer shell that is impervious to damaging pinches and cuts, with a 1680 ballistic nylon diver’s side panel. Both the Voyager EXP (Model BC 4700) and Voyager XT (Model 5200) are further enhanced with a heavy-duty, 210 denier nylon laminated bladder.
- Made in USA
- Inner Bladder: 210-denier nylon laminated (highly resistant to pinches and punctures)
- Wing Gusset Control system for streamlining
- Lift: 35 lbs (15.8 kg)
- LP inflator hose
- 16 in rapid exhaust (pull-dump) or 12 or 16 in elbow
- Mounting: Two sets of marine-grade 316 stainless steel grommet holes are used to attach wing to harness and set diver trim
- Urethane Flanges: Welded in place, which make it easy to switch out corrugated hoses and over pressurization valves without tools
- Weight: 2.8 lbs (1.27 kg)
- Size: 22 in tall x 19 in wide (55.8 cm x 48.3 cm)
- Model BC 4700 Voyager EXP: Durable 1680 denier ballistic nylon (highly resistant to pinches and punctures)
- Available in 5 color combinations: Black/Gray (Standard), Black/Red, Black/Pink, Black/Blue, and OD Green (Limited Edition)
Category | : | |
Brand | : | Diverite |
Code | : | |
SKU | : | D0117 |
Stock | : | Ready |
No product sparepart available
