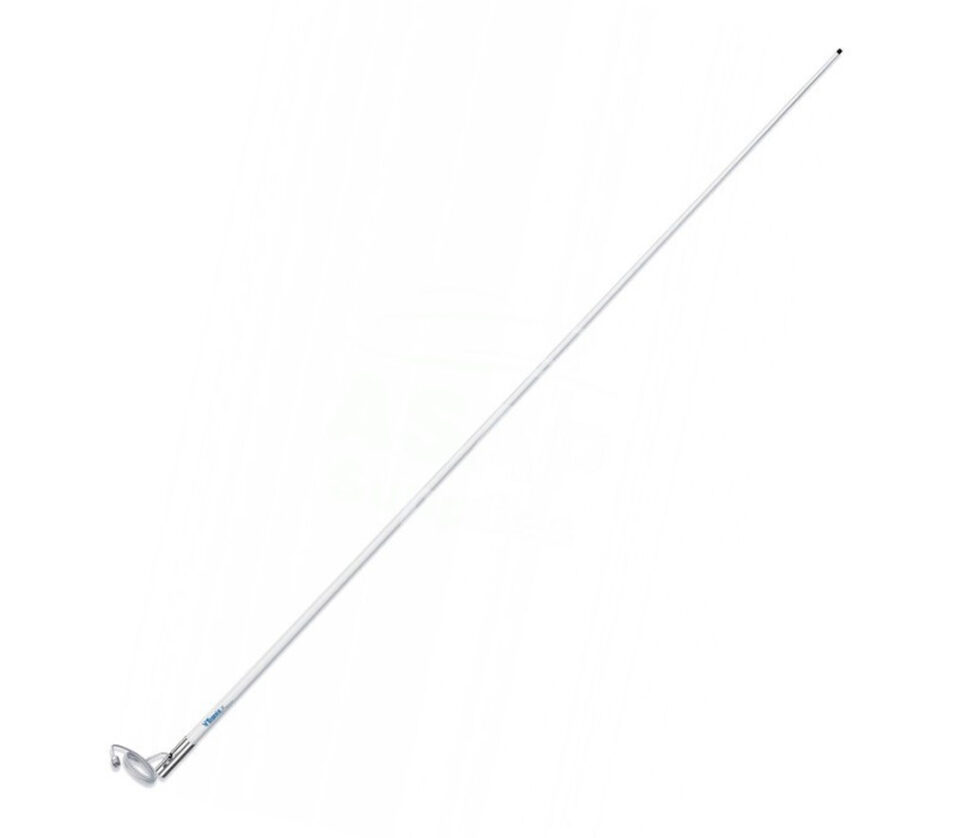

VHF Marine Transceiver Antenna 6 DBI Icom 5101S (2,4m)
VFH antenna Icom, fiberglass 6 DBI 2,4 meter length.
N0008-N AN1-5101-S - VHF ANTENNA ICOM FIBERGLASS 6 DBI (2,4 METER)
V-Tronix white fiber Shakespeare 5101S VHF antenna has a length of 2.4 meters, gain of 6 dBi.
Includes 4.5 meters of RG58 cable and PL259 connector (unsoldered)
5101S VHF Antenna Specifications:- VHF V-Tronix Marine Band
- Material: Durable, high-gloss polyurethane finish so it won't yellow in the sun.
- Maximum input power: 50W
- Length: 2.4m
- Gain: 6 dB
- Color/Finish: White
- a section
- Included 15' cable that can be cut to size
- Cable type: RG-58
- Connector included: PL259 (unassembled)
- Brass and copper elements
- Base: Chrome plated brass clamp with standard 1″-14 thread
- Polarization: Vertical
- Impedance: 50 ohms
- SWR: nominally 1.5:1 at 156.8 Mhz
- Bandwidth: 5 Mhz within 2.0:1 VSWR
- Special: DC grounded, but reads "open" on ohm meter
- Suggested Mount: Style 4187 or 5187 Ratchet Mount
