Vacuum Pump Seafrogs Pre Dive VPS100

Vacuum Pump Seafrogs Pre Dive VPS100

Compatible models of underwater camera housings with vacuum 10mm interface

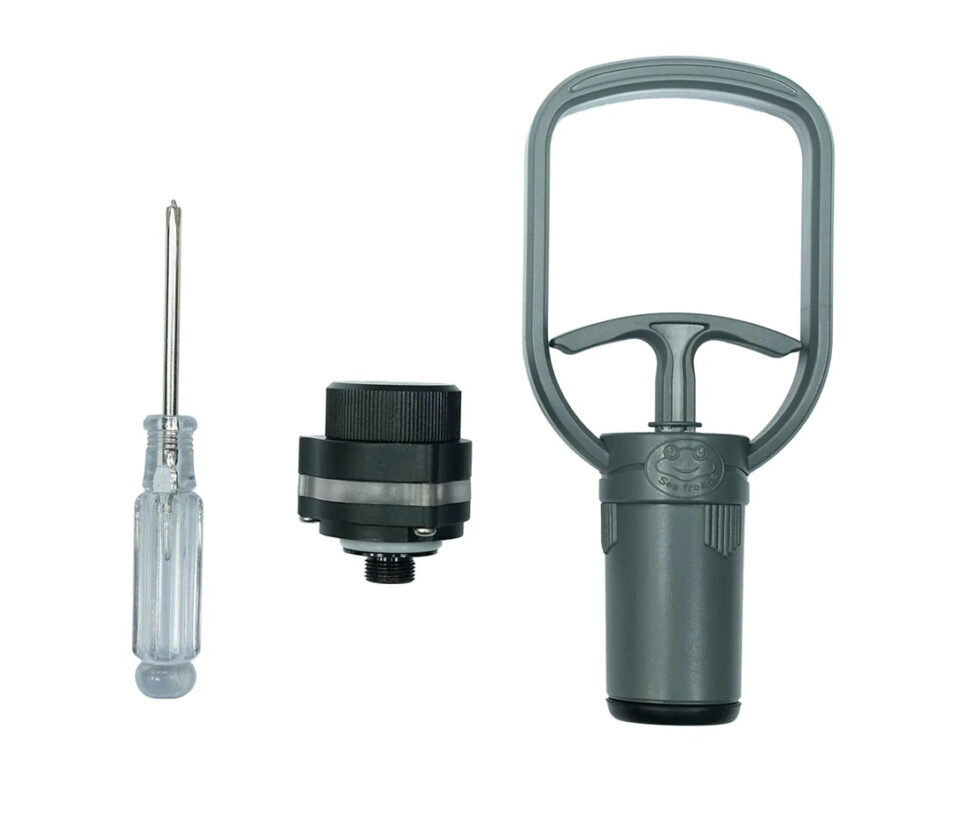

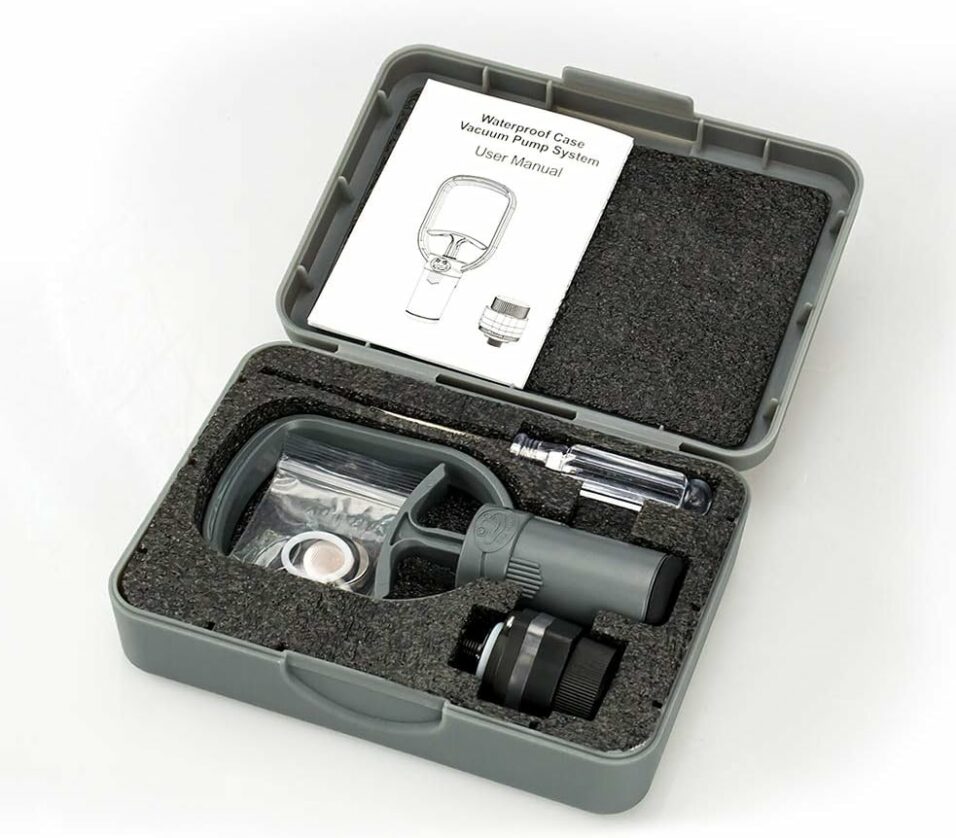

Included :

• Electronic valve
• Pump
• Screwdriver (for battery replacement)
• Battery + oring

The vacuum pump system is used for checking the watertightness of underwater camera housing before submerging.

• Install the camera inside underwater camera housing in dry and low humidity level place.
• 15-30 minutes before your dive remove the lid from back plate to access vacuum pump system opening and make sure the O-ring stays in place.

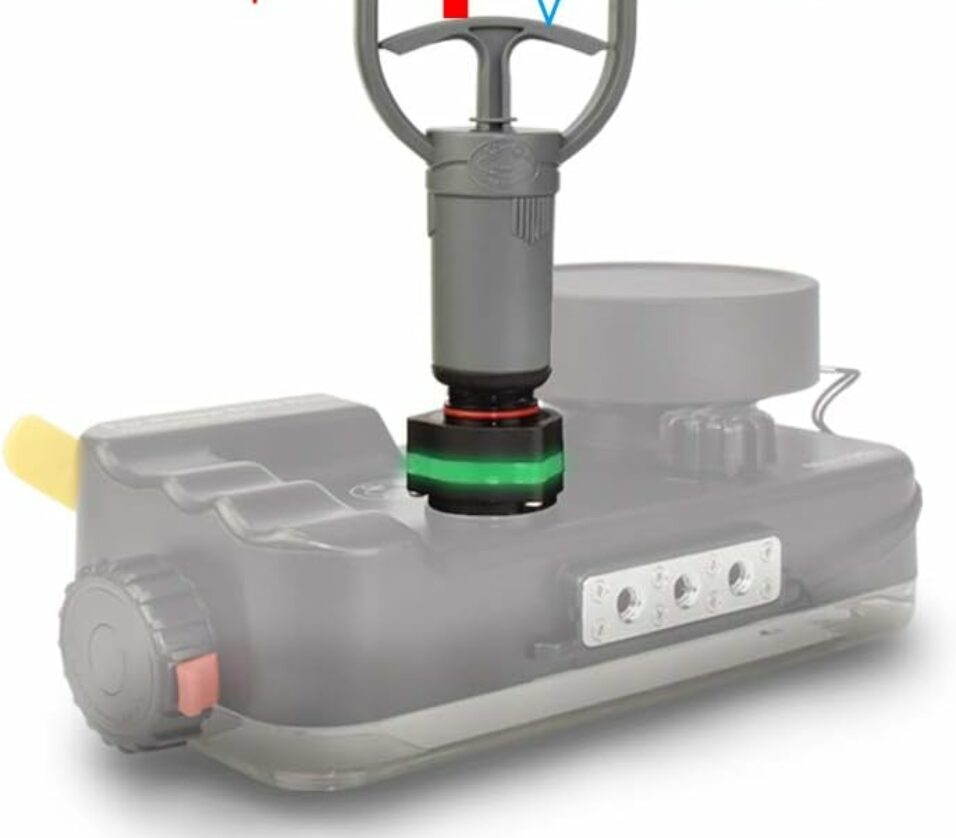

• Attach vacuum pump system to the opening by screwing it clockwise.
• Unscrew the lid of electronic valve and press the button to turn on LED inside the valve.

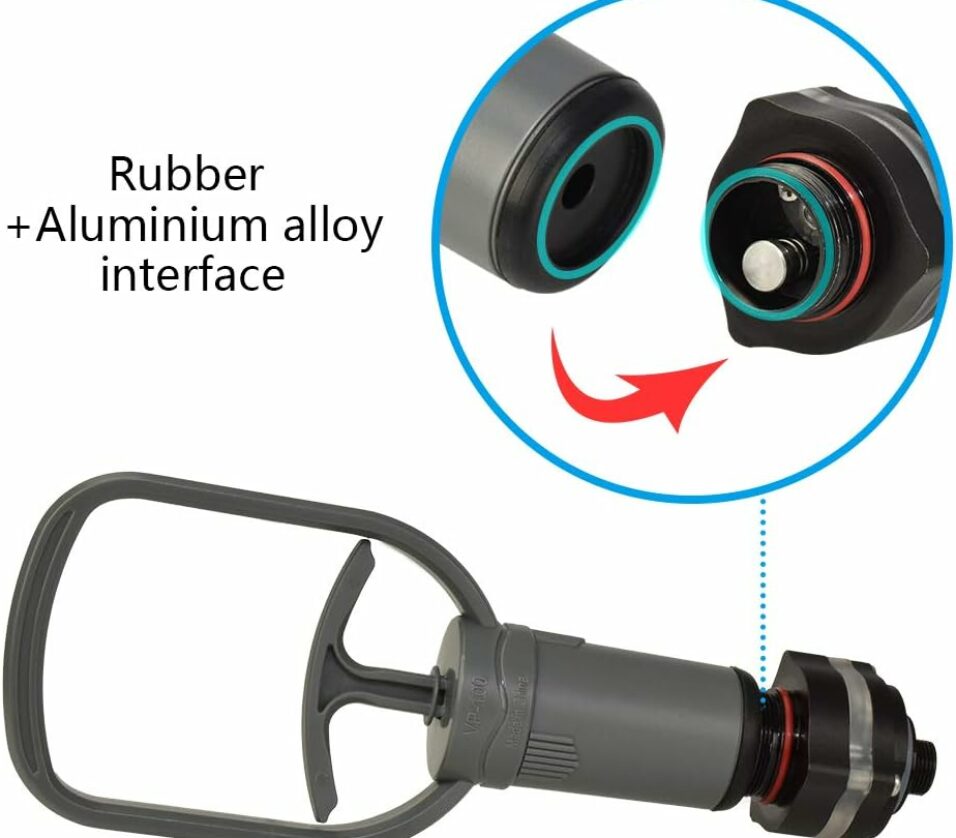

• Attach the rubber part of a pump to valve and start pumping air out.
• Red LED starts blinking, indicating ambient atmospheric pressure. The hand pump is fitted to the threaded valve body and the air is pumped out of a unit until the red LED changes to green LED and add couple more strokes to make sure the sufficient underpressure.
• The additional stroke or two ensures that the valve is not on the edge of threshold. The pump is then removed, and the protective cap d to ensure airtightness.
• Observe the green LED blinking for 15 minutes to make sure there is no air leakage. Unscrew the lid of a valve to access the button and press it for a few seconds to release the pressure from inside and turn the valve LED off.
• Remove the valve from back plate and place vacuum opening lid to its original place, make sure the O-ring is still there

NOTE : THIS ACCESSORY IS NOT MEANT TO BE USED UNDERWATER AS PER MANUFACTURER INSTRUCTIONS!

No product sparepart available
