Reel SMB Diverite Azimuth 400feet / 120m RE70400

REEL DIVERITE AZIMUTH SERIES 400' REEL #24

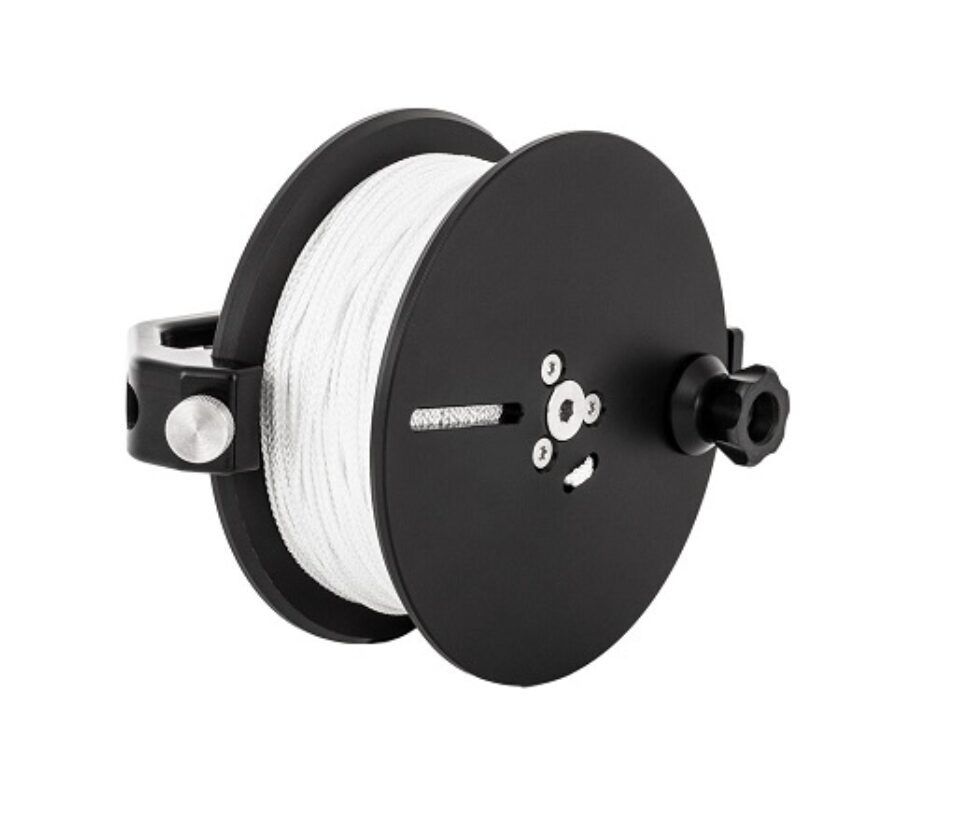

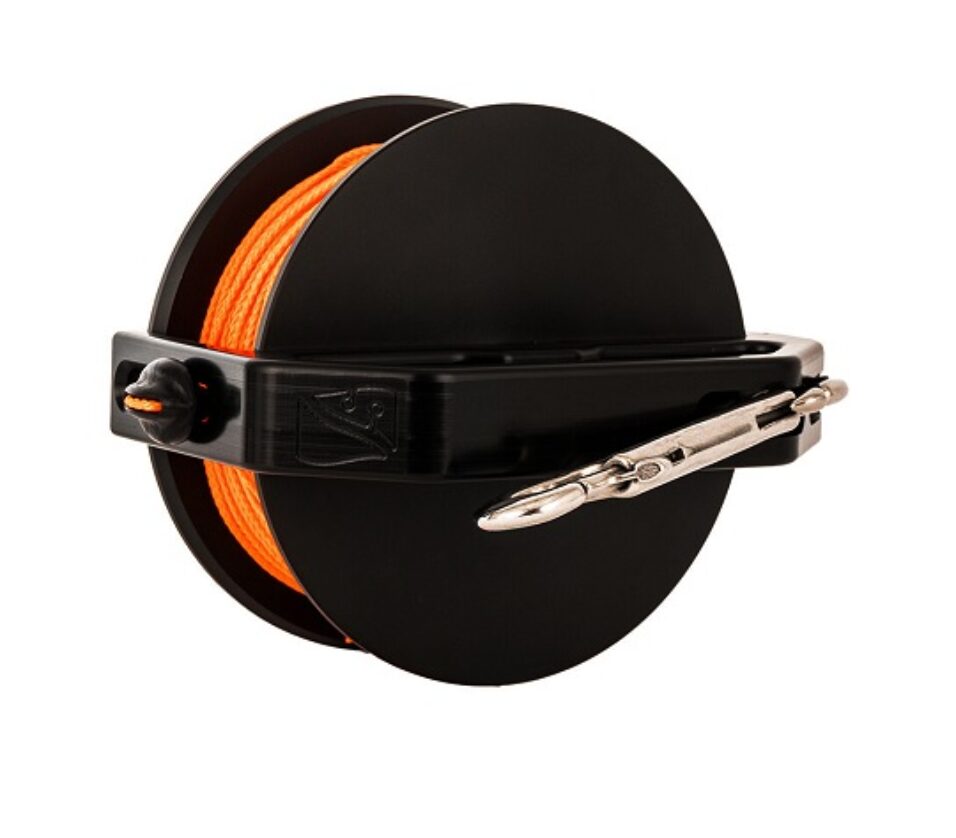

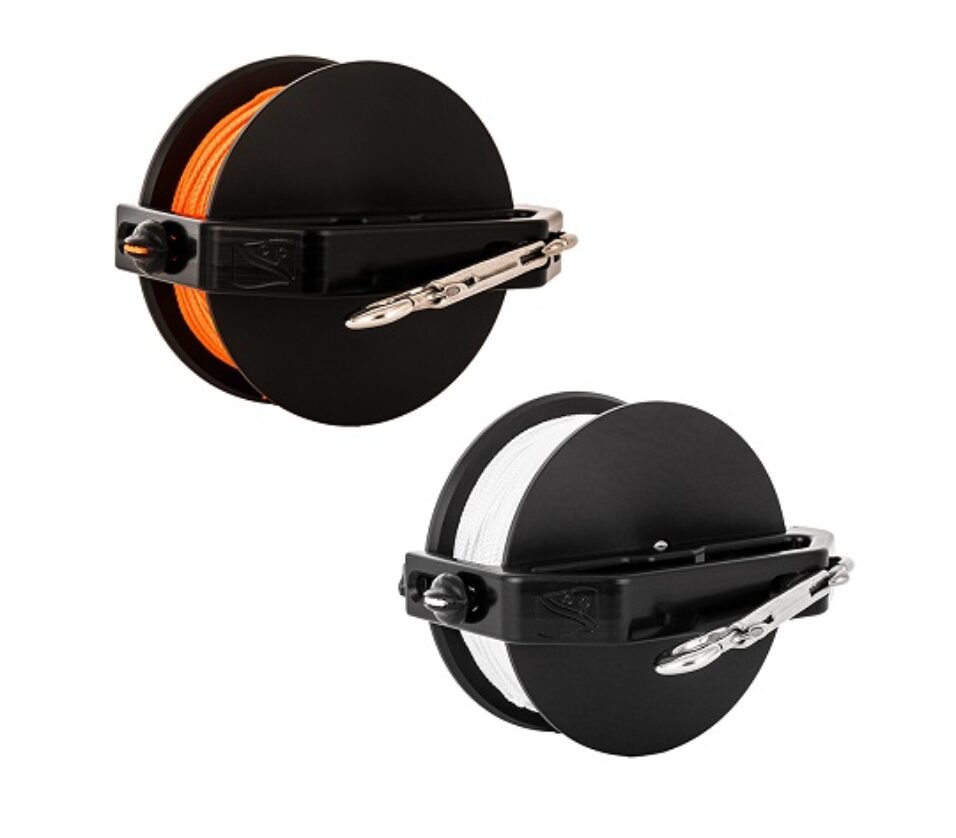

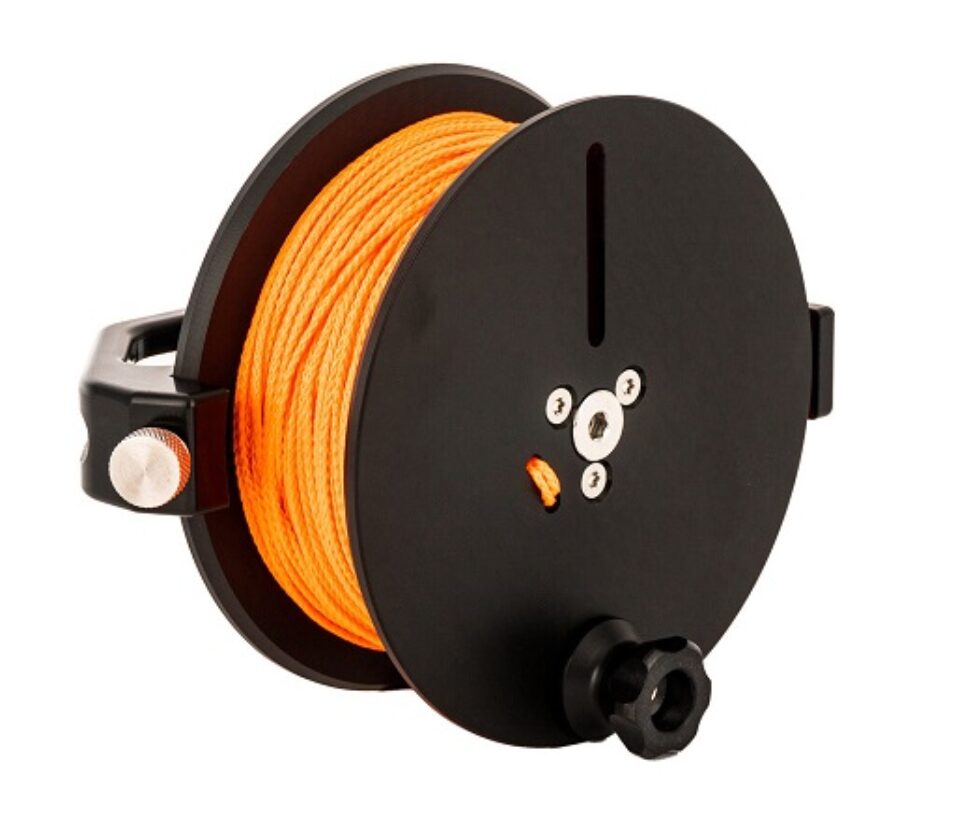

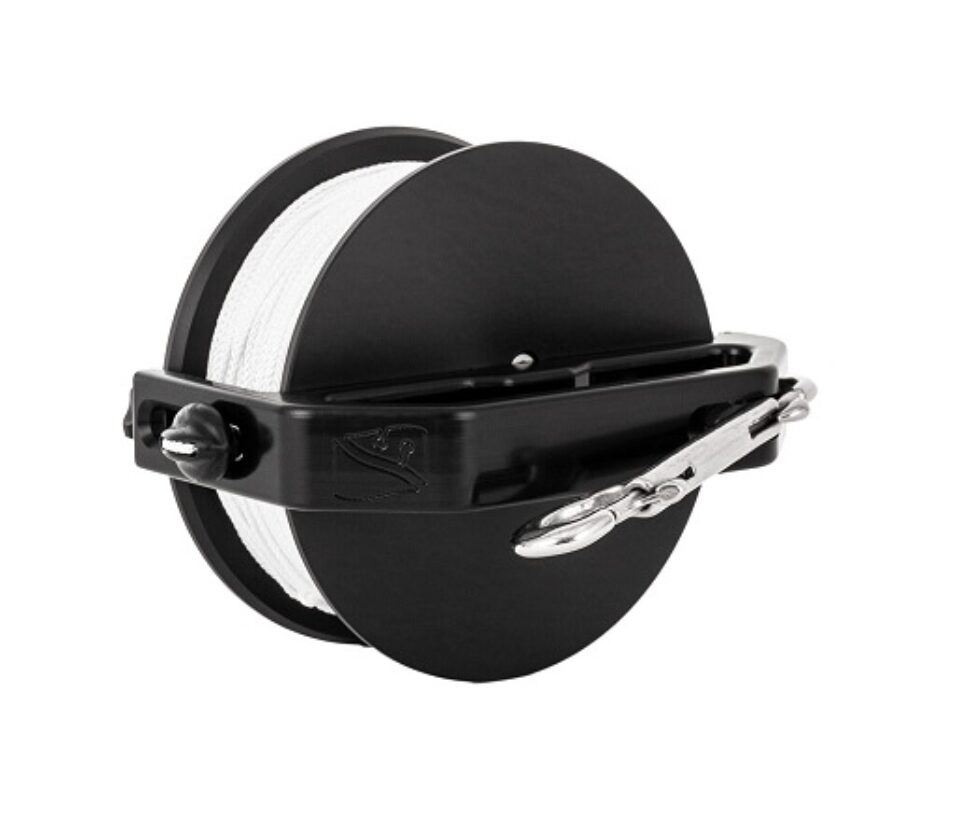

Every component on the Azimuth Reel is carefully crafted from acetal or stainless steel using high precision CNC machining. The dimensions of the reel have been thoughtfully chosen for comfort and ease-of-use as well as being low profile when clipped off and stowed. A one-piece trapezoidal handle provides a high strength, corrosion-free frame and an ergonomic grip with or without gloves. The unique in-line clip slots on the handle orient the reel to sit closer to the body when clipped to a D-ring. This design also allows the included double bolt snap to swing out of the way and lay against the handle, negating the need to remove the clip for quick deployment.

The innovative angled lock-down screw design is more ergonomic and streamlined than traditional solutions. Additionally, it applies lateral force to the beveled inner edge of the spool side plate to hold it tightly against the frame, providing a very secure lockdown. Finally, a pressed-in pin through the reel frame captures the custom lockdown screw, eliminating the chance of backing it out too far and losing it on a dive.

The 400-foot (120 m) size is standard for use as a primary cave reel and is perfect for extended exploration of any underwater environment. Available in white or hi-viz orange line.

• Made in USA
• Single-piece machined acetal frame
• Machined acetal spool with knurled center core and line lock holes
• Marine-grade, passivated 316 Stainless Steel hardware
• Captured lockdown screw
• Stainless steel double bolt snap included
• 400 ft (120 m) of braided #24 line (white or hi-viz orange)
• “Fuel gauge” slot on spool shows line remaining
