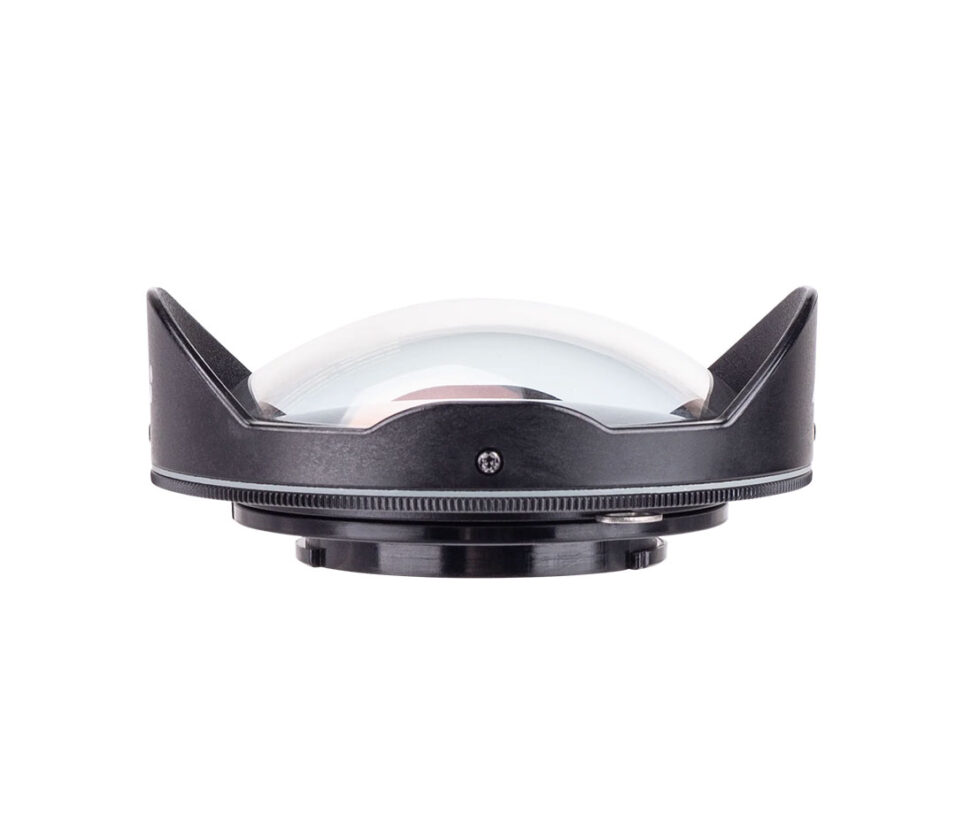

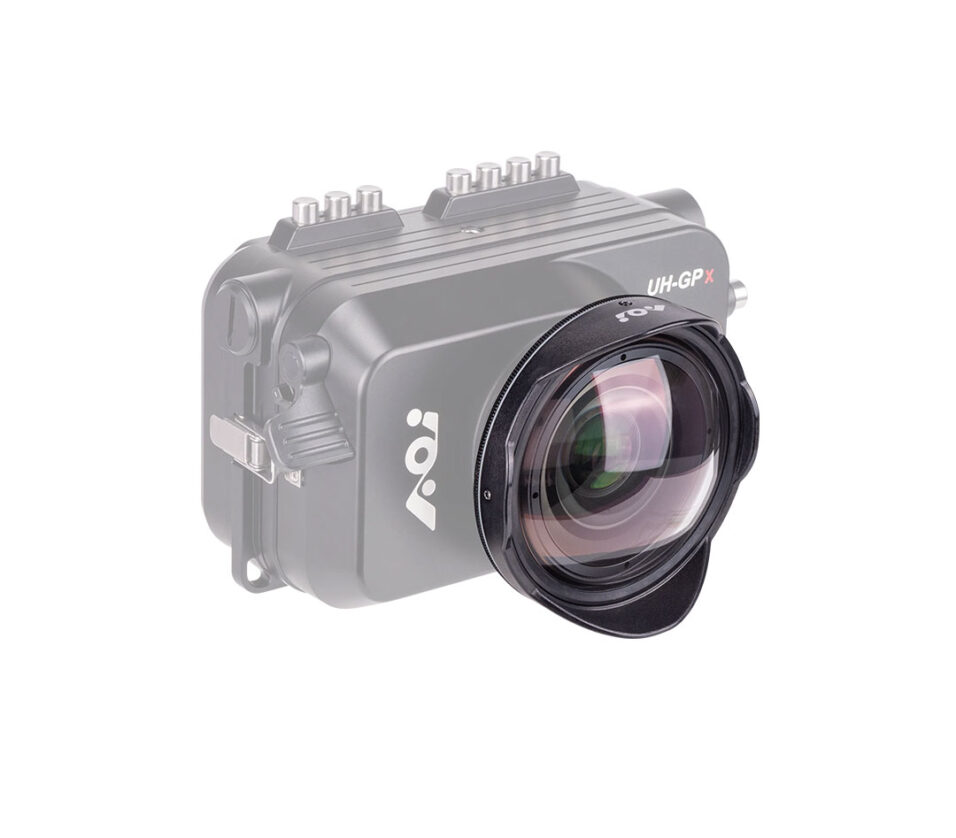

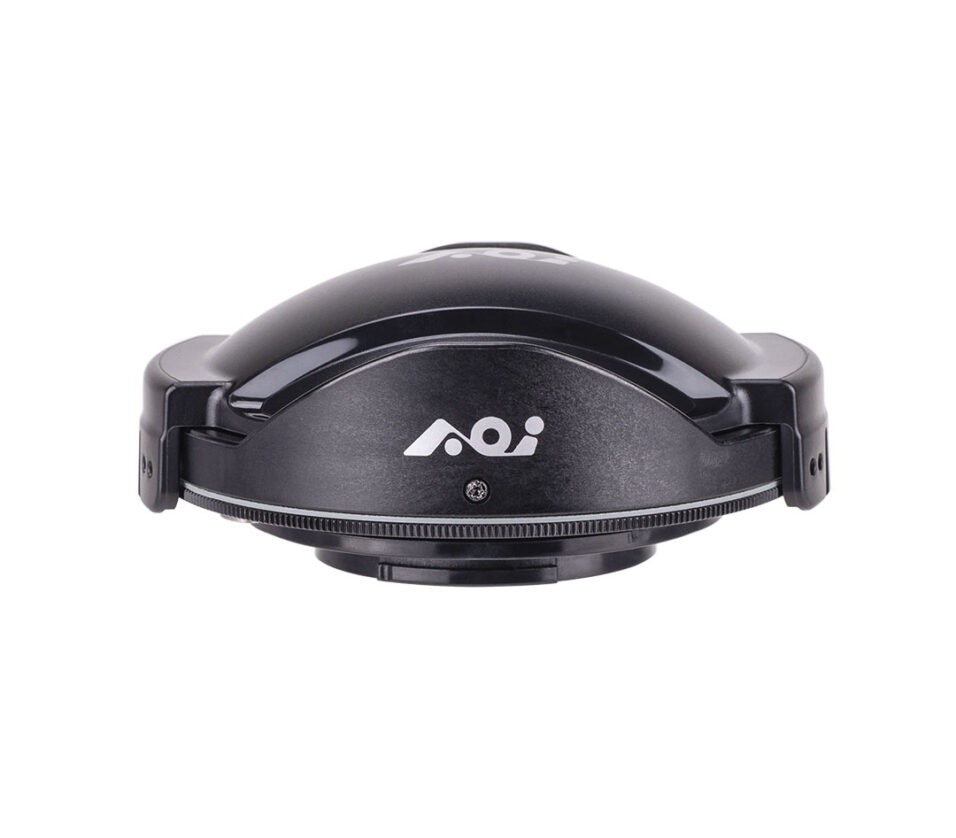

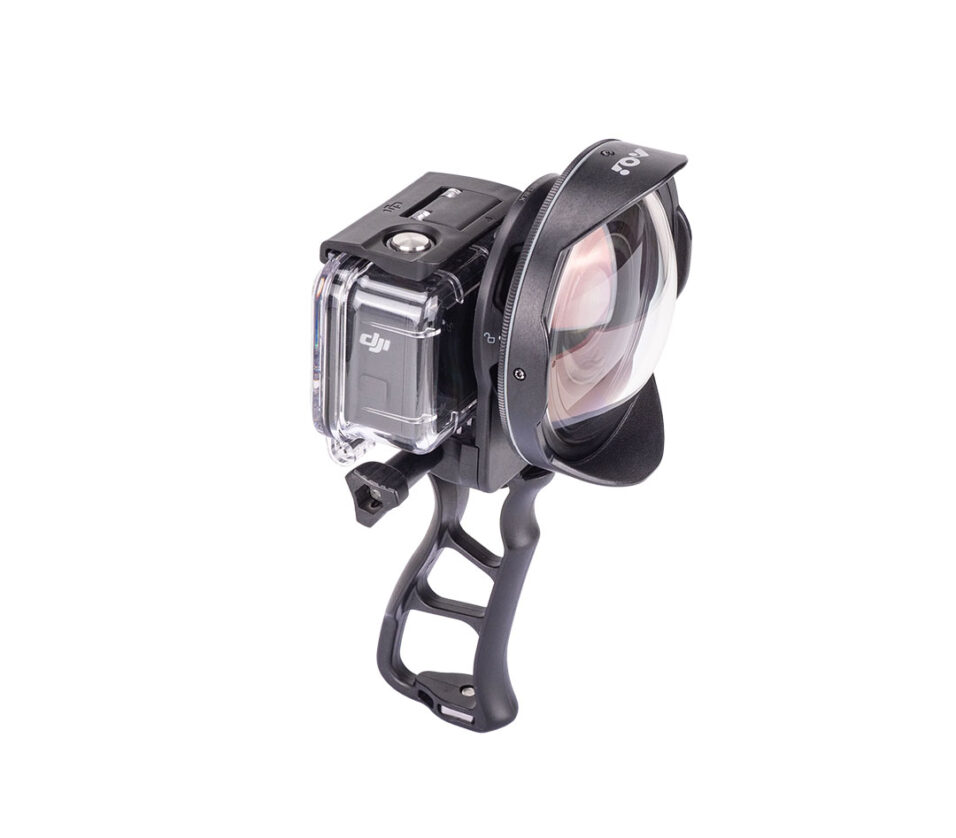

UWL-03 PRO - Wide Angle 0.73X Conversion Lens for Action Camera & Phone
MODEL :
AOI UWL-03PRO
DESCRIPTION :
Underwater 0.73X Wide Angle Correction Lens for Action Cameras & Phones
LENS CONSTRUCTION :
4 Elements in 4 Groups
LENS COATING :
- All Glass Elements with Multi-layers AR Coating
- Optical Grade Glass Dome Lens with Inner Surface Multi-layers AR Coating
FIELD OF VIEW:
- 140° (underwater)
- 150° (on land)
MAGNIFICATION:
0.73X (underwater)
MOUNTING SYSTEM:
- Using AOI Quick Release System- 02 (QRS-02)
- Lens pre-installed with QR2 Mount (compatible with the most popular AD Mount)
- Optional Mounting Adapter in M55, M52 & M46 available
DEPTH RATING:
100 Meters / 328 Ft.
LENS BARREL / DOME LENS / LENS HOOD MATERIAL:
Aluminum Alloy with Black Hard Anodized / Glass Lens / Polycarbonate
WEIGHT (ON LAND / UNDERWATER):
- 350 g (on land)
- 193 g (underwater)
DIMENSIONS:
99mm (D) X40.3mm (H)
ACCESSORIES:
Dome Lens Hard Cover (AOI DHC-02) & Rear Lens Cap (AOI QRS-02-RC1), Lens Secure Line, Lens Pouch
| Category | : | Underwater Cameras |
| Brand | : | AOI |
| Code | : | 0 |
| SKU | : | 0 |
| Stock | : | Ready |
No product sparepart available
