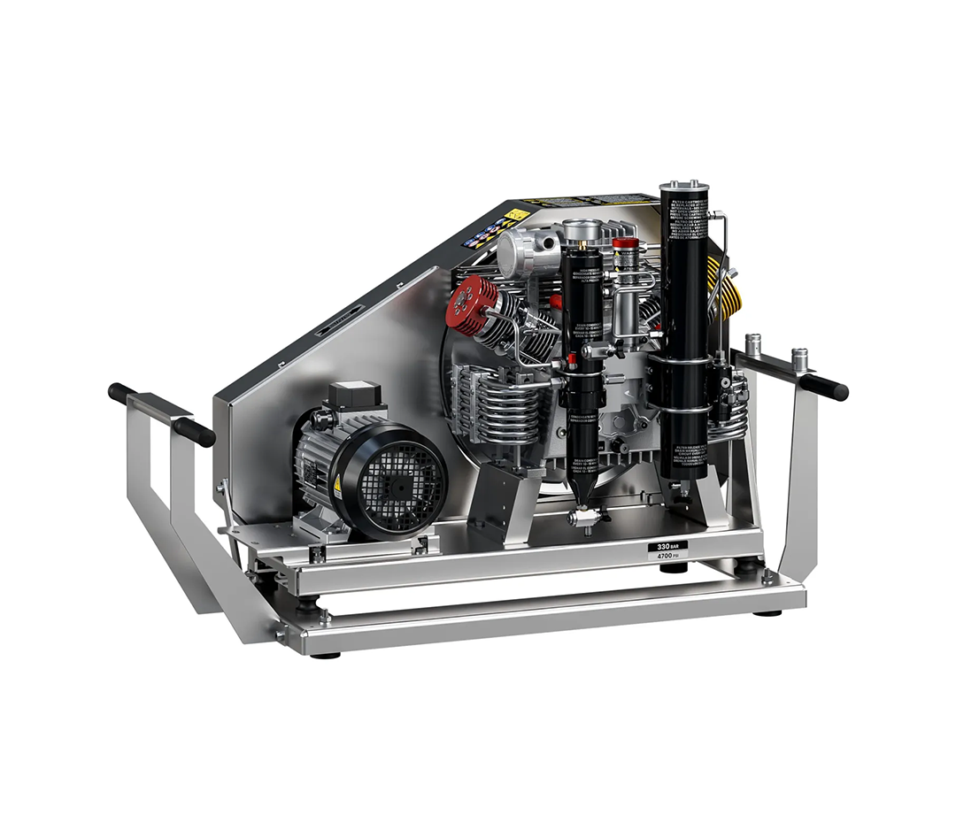

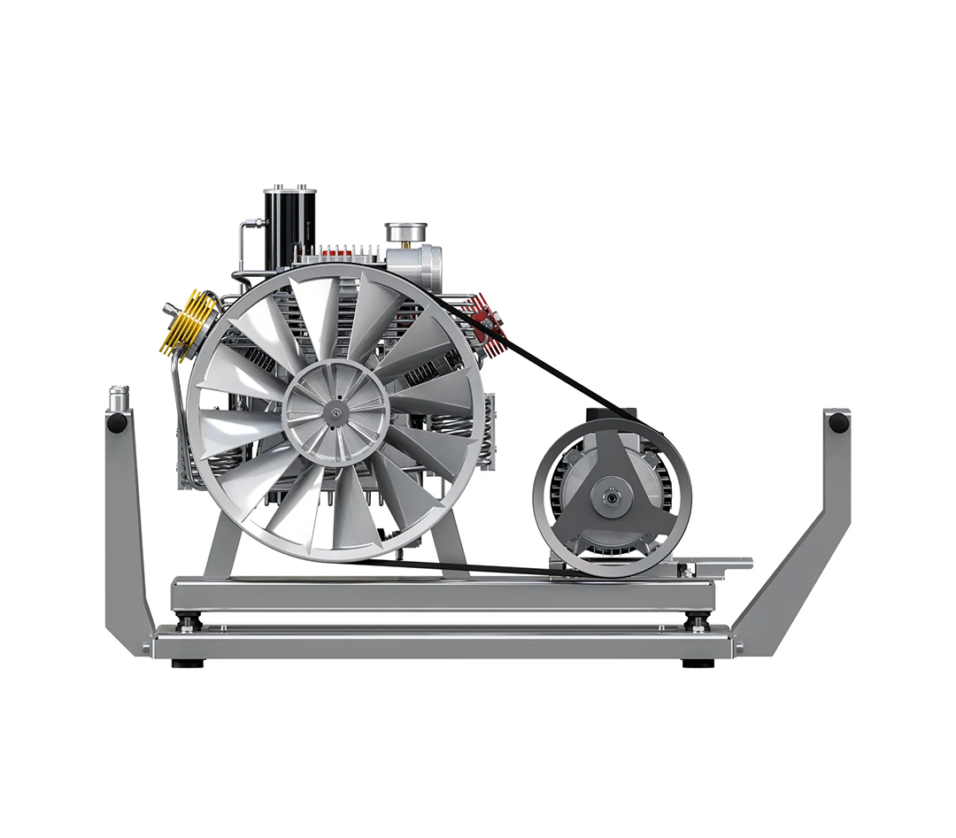

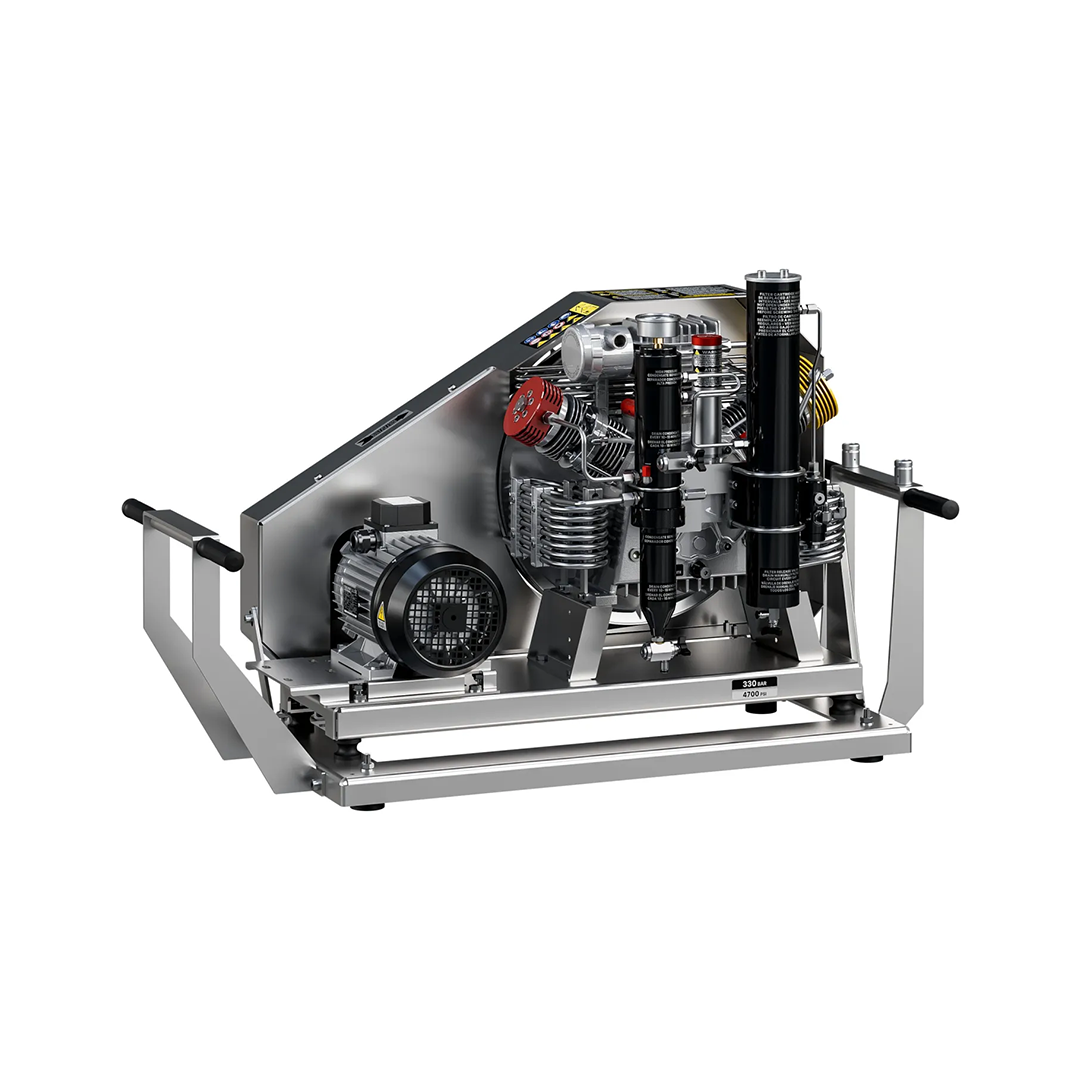

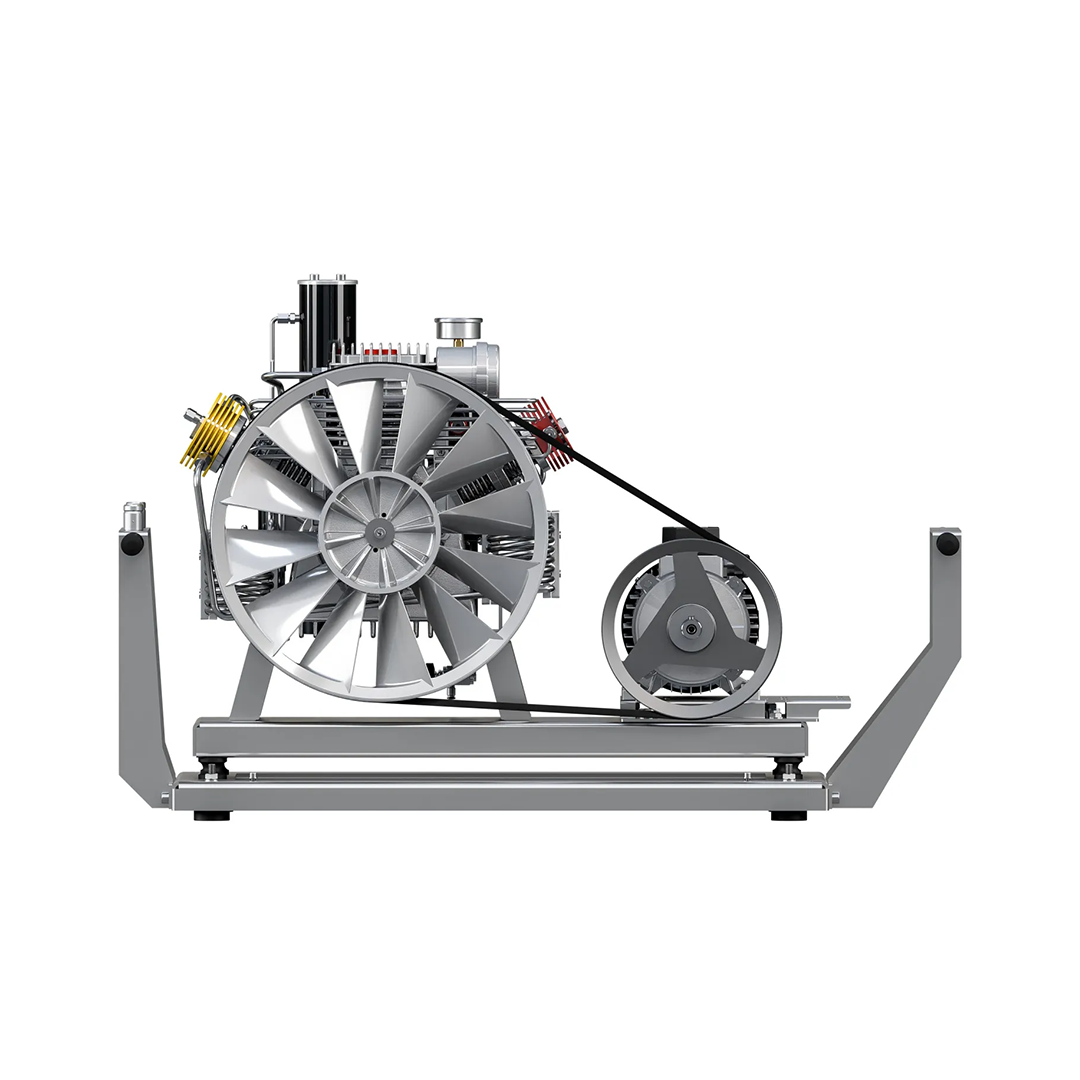

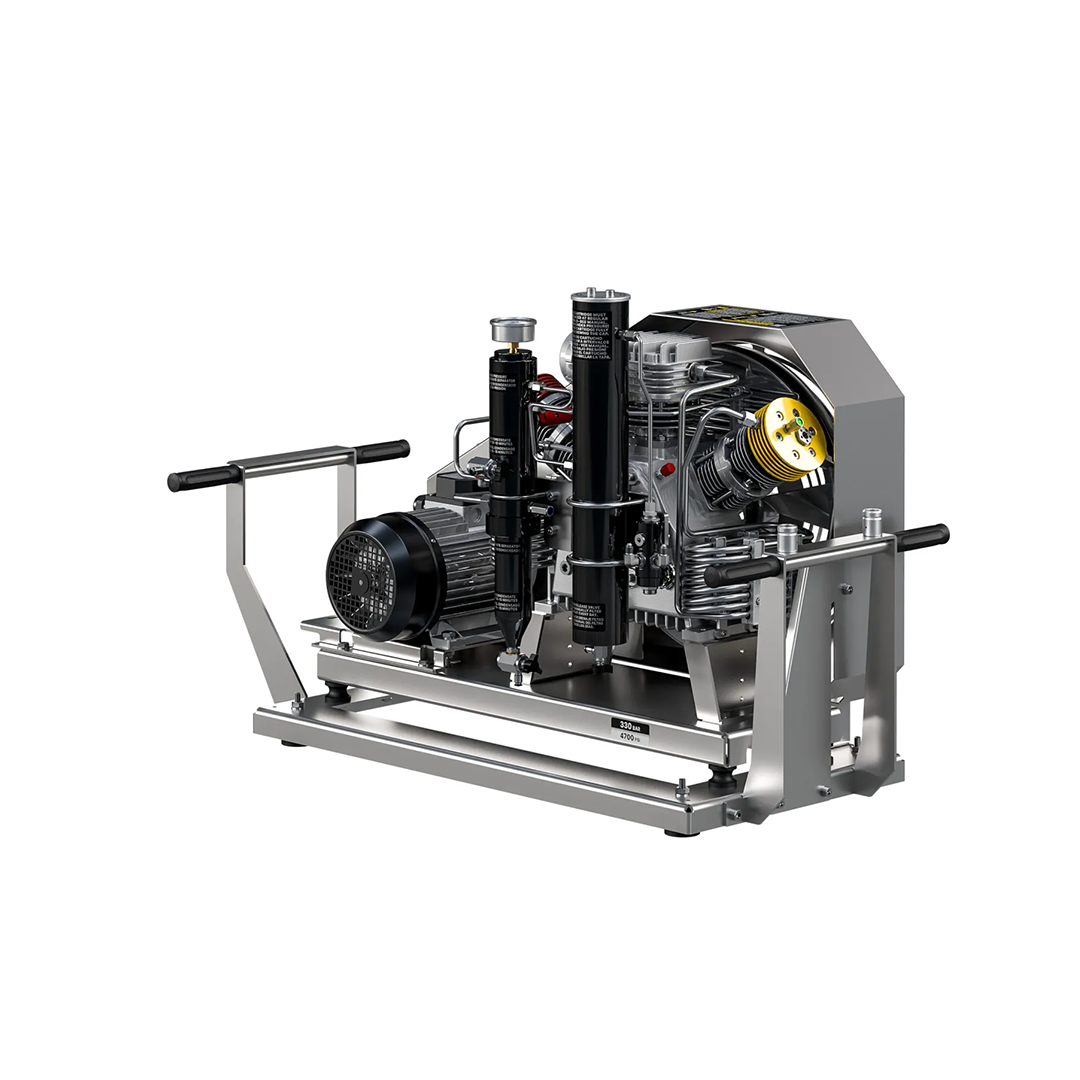

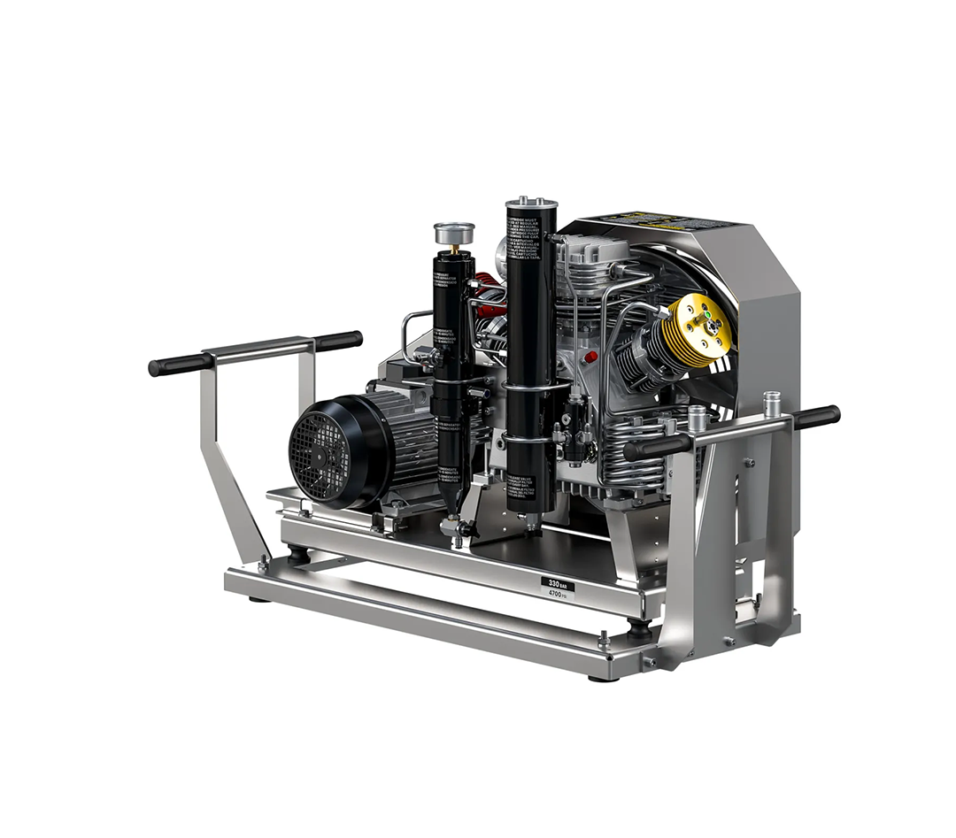

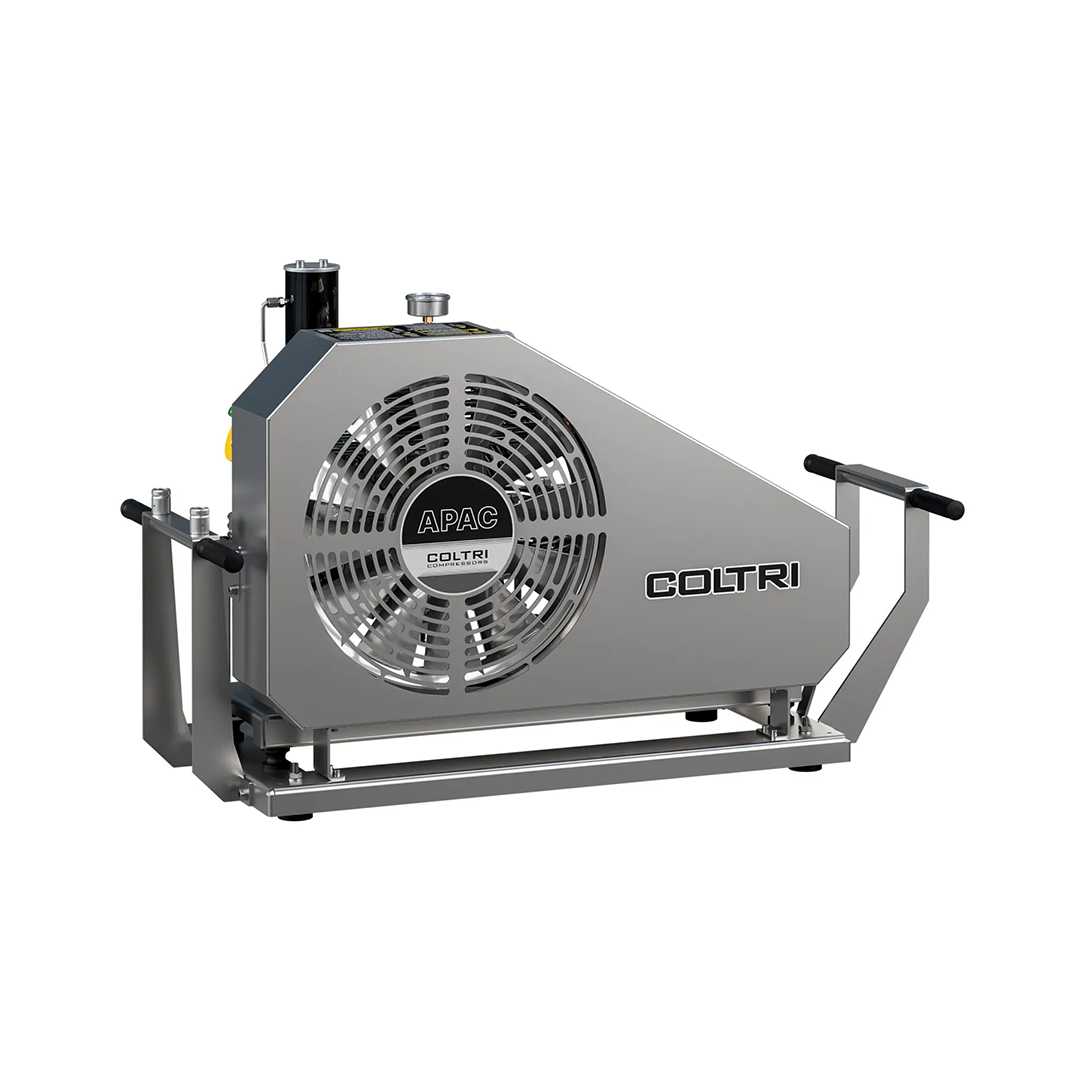

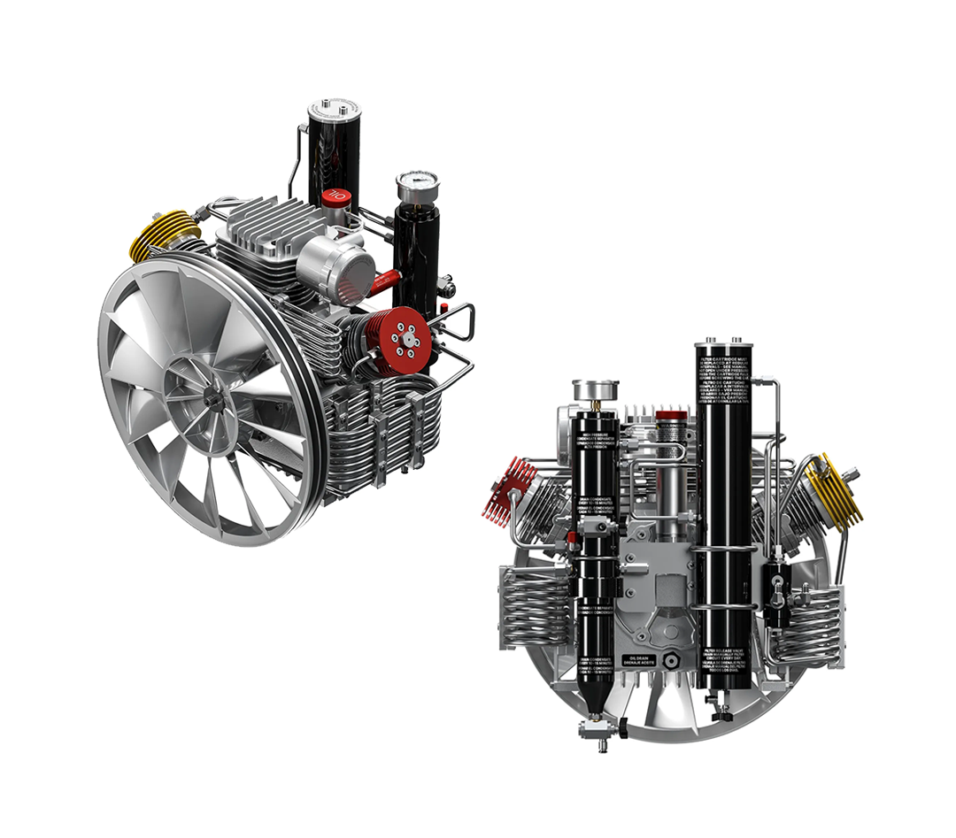

Scuba Compressor Coltri APAC 315 ET 225Bar SC000176/I
Coltri APAC 315 ET – a powerful and durable compressor with a stainless steel frame, dual high-pressure outlets (232–330 bar), and a Maxifilter system for superior filtration.
Technical data
- Type of gas: Breathing air EN 12021 - Nitrox 40% max O₂ - Helium - Nitrogen
- Intake pressure: Atmospheric max 300 mbar
- Nominal pressure: 250 bar / 330 bar / 360 bar
- Working pressure: 232 bar / 300 bar / 330 bar
- Max working pressure: 232 bar / 420 bar
- Permissible ambient temperature range: -10° C to +40° C
- Permissible altitude: 0 ÷ 1,500 m SLM
- Max permissible tilt: 6°
- Design: Fully protective cage
- Operating voltage, standard: 230 V, 60 Hz / 400 V, 50 Hz
- Other operating voltage: 230 V, 50 Hz / 440 V, 60 Hz / 230 V, 60 Hz
- Oil: Synthetic Coltri Oil ST 755
- Oil change interval: 1 year / 1,000 h
- Frame: Stainless steel - Powder coating painting - Scratch proof

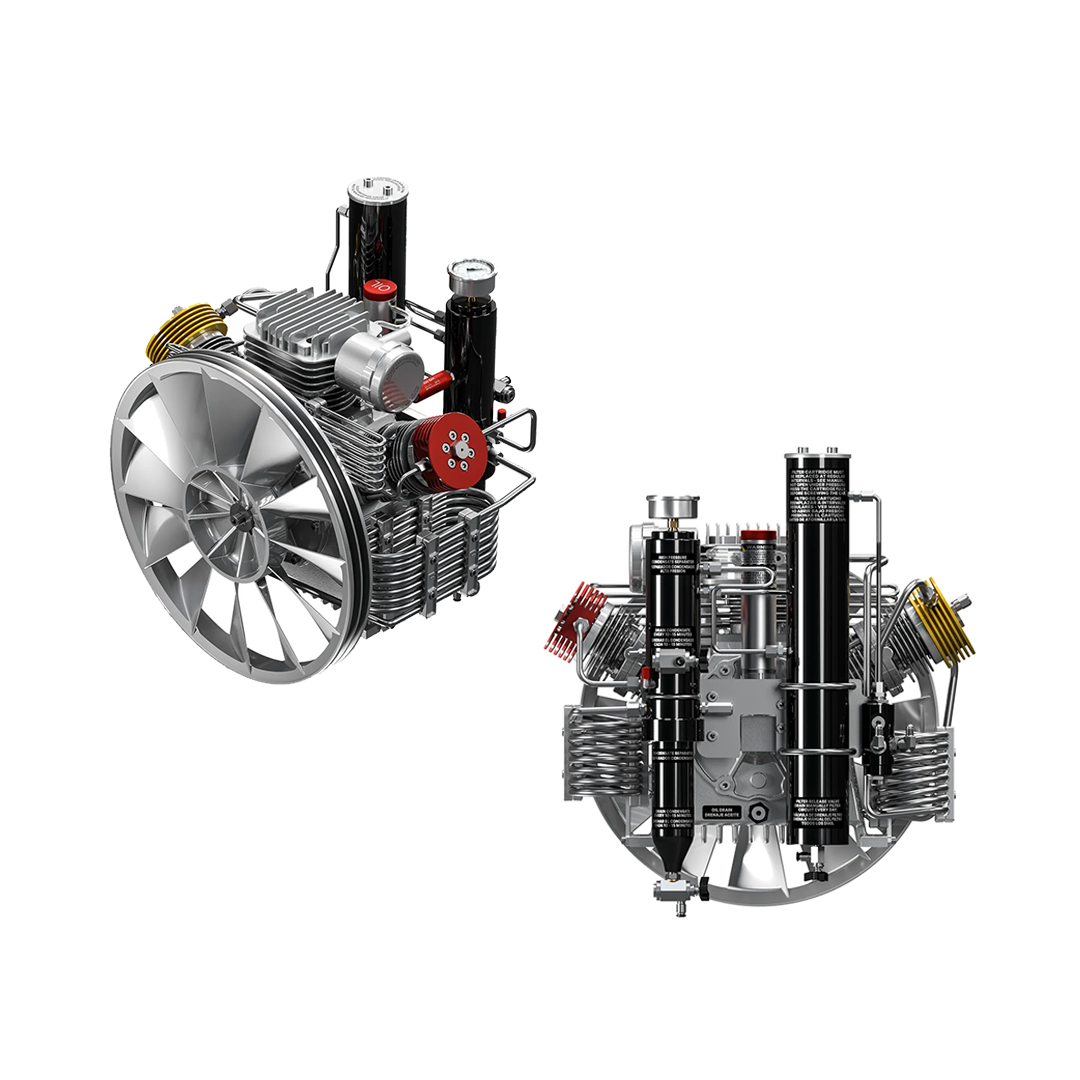

Compressor
- Charging rate: 315 l/min 18.9 m³/h 11.1 cfm
- Purification System: Maxifilter
- Cooling air flow: 2,180 m³/h
- Noise: LpA 72 dB
Electric motor
- Power: 5.5 kW - 7.5 Hp
- Type: Three-phase electric
- Operating voltage/frequency: 400 V, 50 Hz (Different voltage/frequency available on request)
- Rated current: 12.6 A
- Speed (RPM): 2,850
- Protection class: IP55
| Category | : | Compressors |
| Brand | : | Coltri Compressor |
| Code | : | SC000176 |
| SKU | : | 55621 |
| Stock | : | Ready |
No product sparepart available
