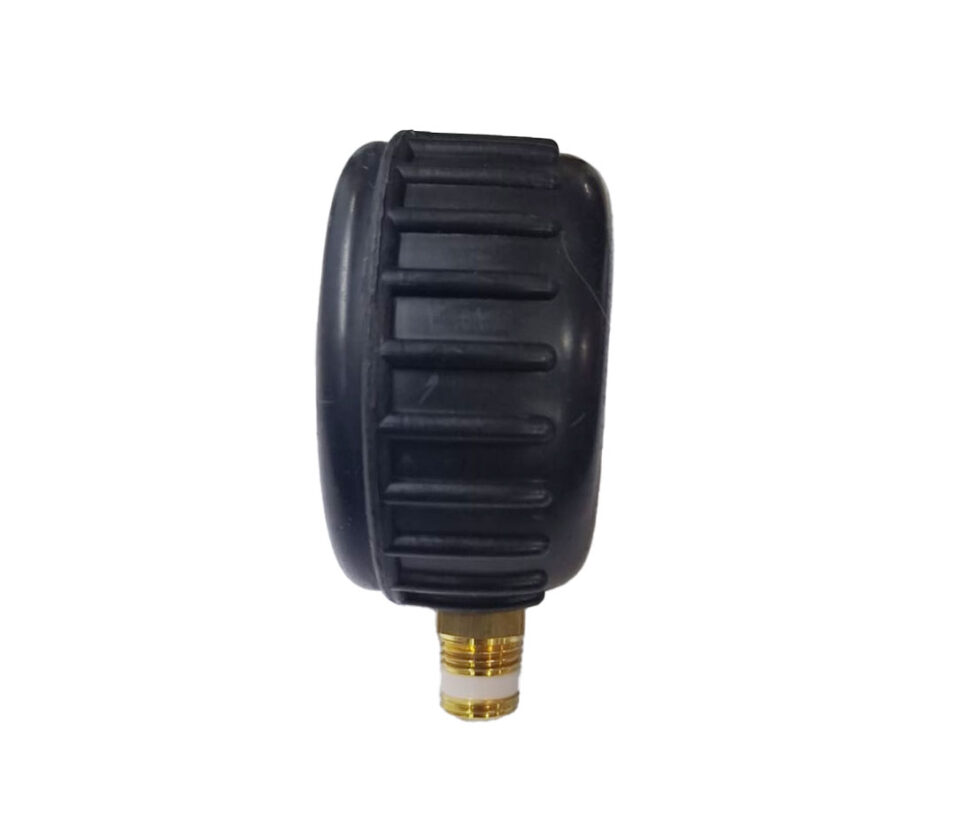

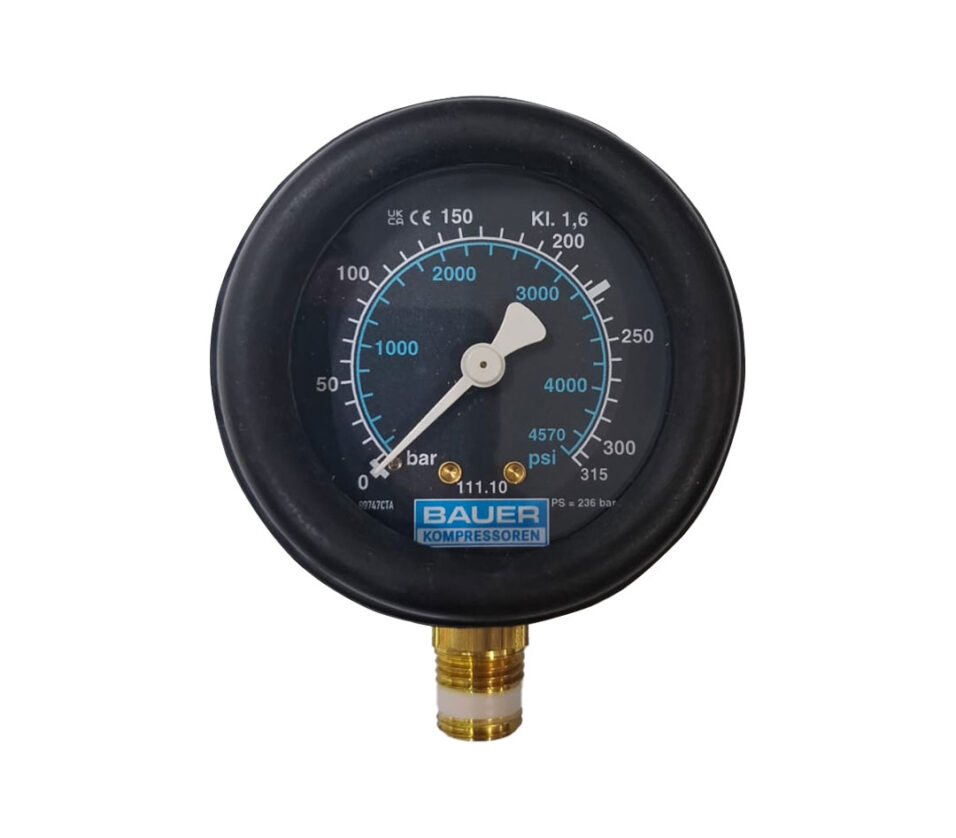

Module Pressure Gauge Compressor Bauer 225 Bar Black Dial N45884
Module Pressure Gauge Compressor Bauer 225 Bar Black Dial N45884
Product introduction : Bauer pressure table N45884 Bauer compressor special precision pressure gauge, the pressure range is 0-315bar. Commonly used in the J II series, Bauer compressor Mariner series, BAUER series and other types of machines.
Module Pressure Gauge Compressor Bauer 225 Bar Black Dial N45884
Product introduction : Bauer pressure table N45884 Bauer compressor special precision pressure gauge, the pressure range is 0-315bar. Commonly used in the J II series, Bauer compressor Mariner series, BAUER series and other types of machines.
The pressure range of the pressure gauge is 0-315bar, the need to pay attention when using is not to fall not pressure.
SPECIFICATIONS :- BAUER N45884 - Pressure gauge
- Product features :
- Connection G1 / 4: below
- Front ring: no
- Liquid damped: no
- Display range: 0 to 315 bar
- Safety version according to DIN16007
- Nominal size: 63mm
- Technical specifications :
- Material: brass
- Front ring: Cr-Ni steel
- Measuring element: copper alloy
- Dial: white
- Medium: air, gases
- Show : bar / psig.
- Display accuracy: Class 1.6
- Ambient temperatures: -25 C to + 60 C
| Category | : | Gauge & Computers Compressors |
| Brand | : | Bauer Compressor |
| Code | : | N45884 |
| SKU | : | 55869 |
| Stock | : | Ready |
