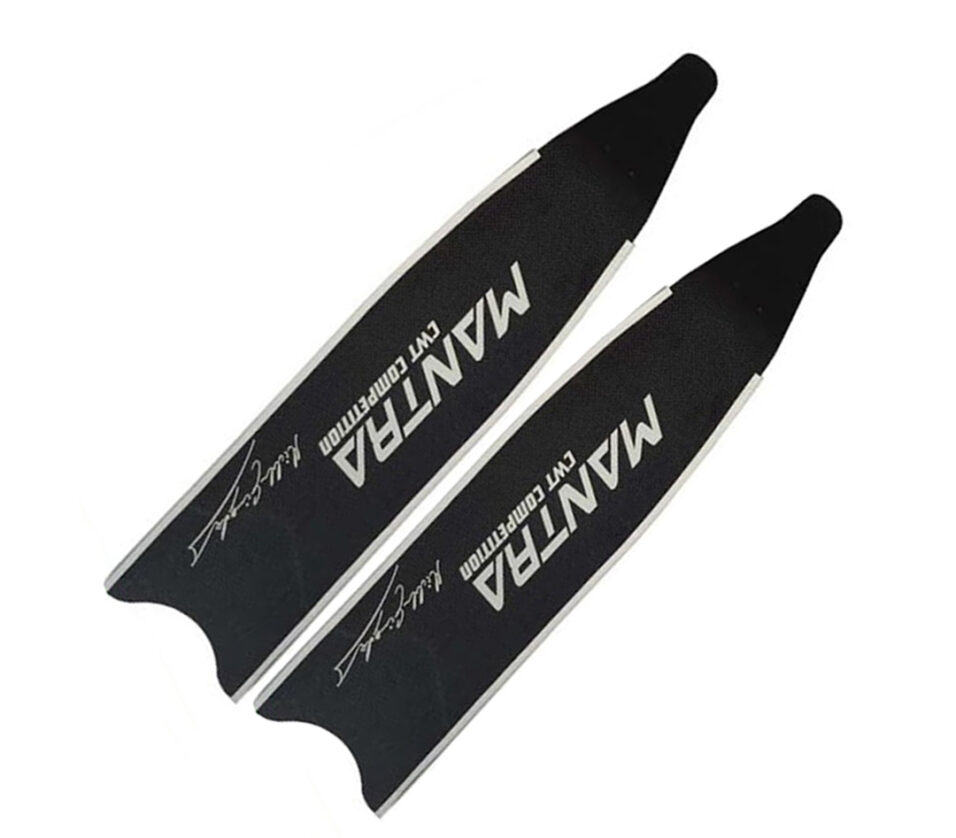

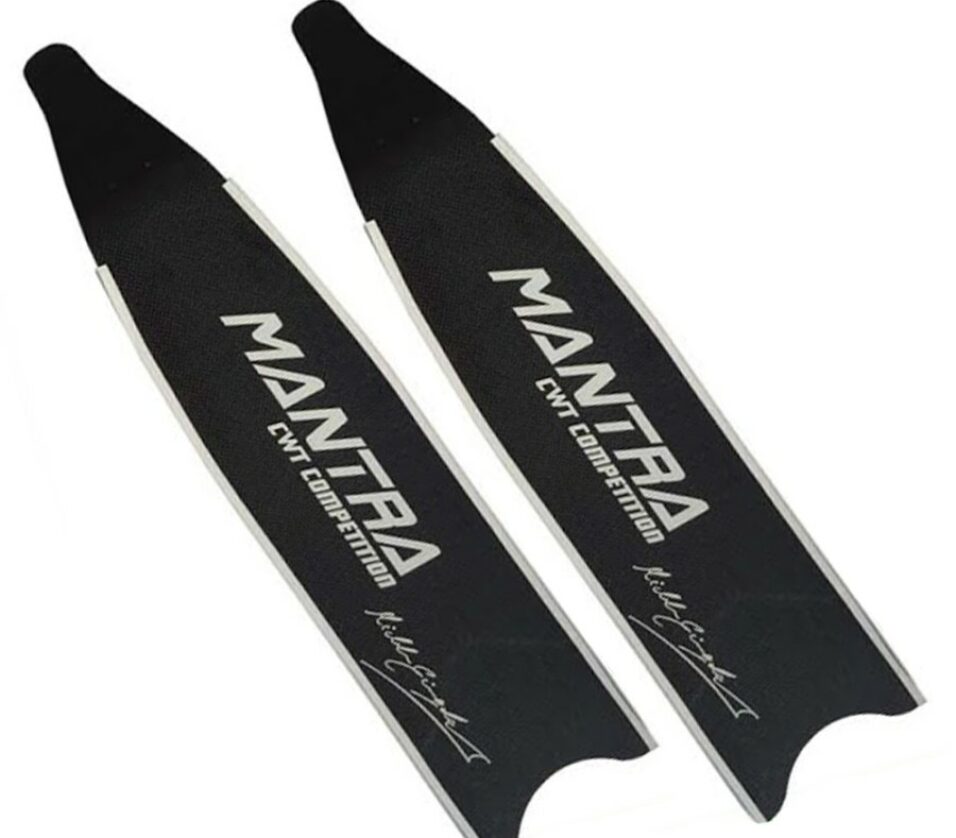

Long Fins Full Foot Cetma Mantra CWT Pure Carbon Blade White Logo CWMWHWH – CWSWHWH

Long Fins Full Foot Cetma Mantra CWT Pure Carbon Blade White Logo CWMWHWH - CWSWHWH The material used is 100 % Carbon Prepreg produced with hot melt impregnation system, using a micro-toughened tetra-functional epoxy resin. DRS (Dynamic Resonance System) innovative and exclusive CETMA COMPOSITES system. DRS implies that MANTRA blades were designed to reach in resonance in a definite frequency of kick. Resonance phenomenon is well note physical phenomenon characterizing all the structures. Simplifying, when a structure is forced with a frequency close to its natural frequency the amplitude of vibration increase in a very efficiency way (low damping). Operating by distribution of the stiffness along the blade we tuned the blades to certain natural frequencies. So when the blade is driven, by kicking, with a certain frequencies range the user feeling is a very low effort with an outrageous thrust. This study is done using a laser vibrometer (LDV) to perform a modal analysis, which helps in a stiffness distribution design of the blade. SPECIFICATIONS :

• Dimensions: Width 195 mm; Length from the bending angle 702 mm; bending angle 27 degrees.
• Its exclusively supplied with S-WiNG footpocket by CETMA COMPOSITES.
• Water rail: new edition of High Performance CETMA COMPOSITES Water rails with variable height and high efficiency.
